Part Number	Length	Thread Length	Grade	Pitch	Spanner Size	Weight
FD-tur-cb	16	16	10.9	M8 x 1.25	Cup Square Coach Bolt	30g
FD-835	35	23	10.9	M8 x 1.25	13	22g
FD-840-1	40	26	10.9	M8 x 1.25	13	24g

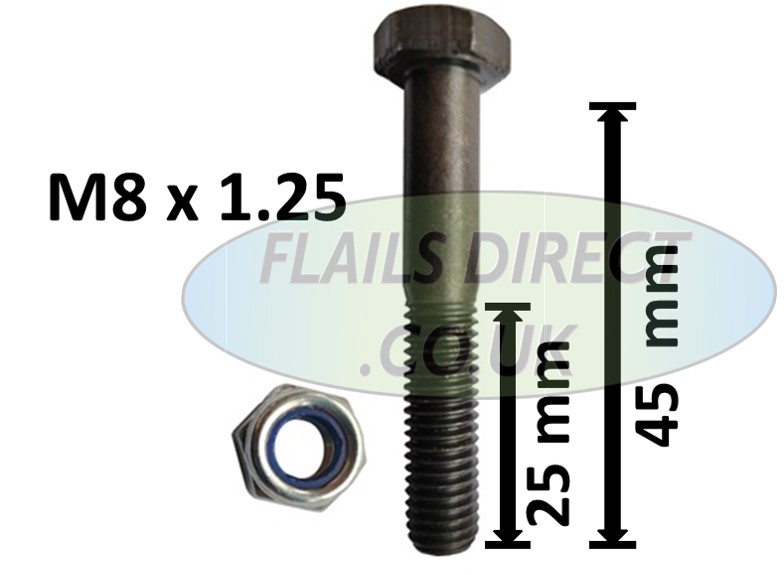

FD-845	45	25	10.9	M8 x 1.25	13	25g

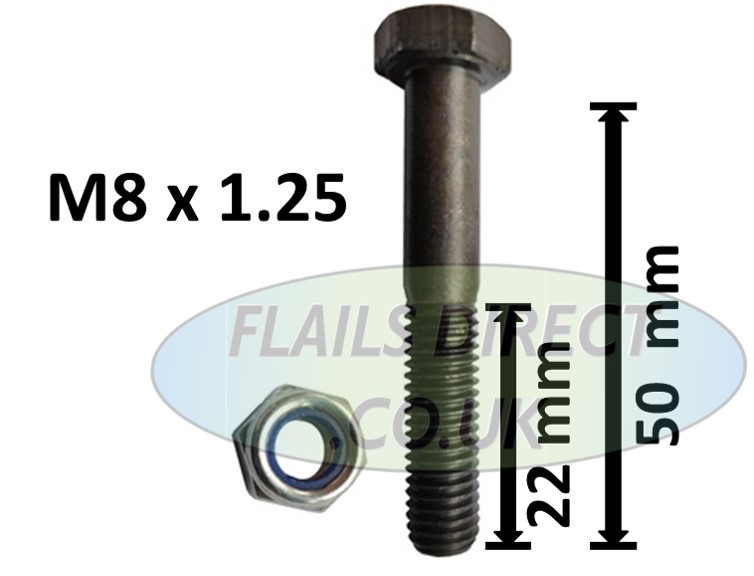

FD-850	50	22	10.9	M8 x 1.25	13	27g
FD-855-1	50	24	10.9	M8 x 1.25	13	28g
FD-860-1	60	26	10.9	M8 x 1.25	13	31g

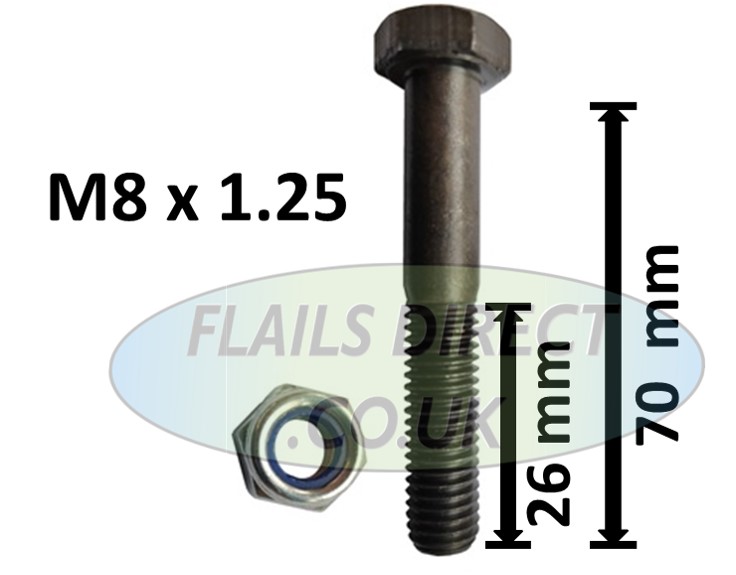

FD-870	70	26	10.9	M8 x 1.25	13	35g

Part Number	Length	Thread Length	Grade	Pitch	Spanner Size	Weight
RV-1030	30	20	10.9	M10 x 1	17	30g
FD-rbr-03	35	16	10.9	M10 x 1.5	17	40g
FD-1040	40	12	10.9	M10 x 2	17	46g
FD-1040L	40	30	10.9	M10 x 1.5	17	43g
FB-KEN-CB	40	40	8.8	M10 x 1.5	Coach Bolt	50g
FD-1050	50	31	10.9	M10 x 1.5	17	49g
FD-1055-1	55	30	10.9	M10 x 1.5	17	52g

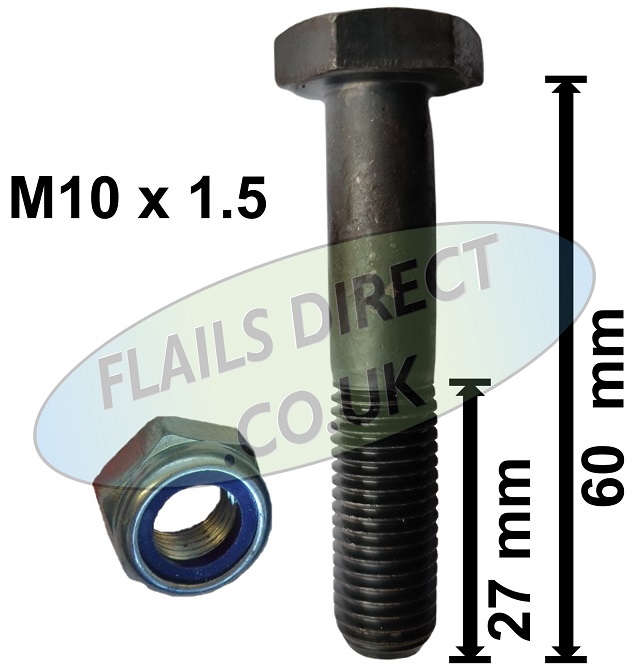

FD-1060	60	27	8.8	M10 x 1.5	17	55g
FD-1065	65	18	10.9	M10 x 1.5	17	60g
FD-1065-1	65	28	8.8	M10 x 1.5	17	60g
FD-1070-1	70	28	10.9	M10 x 1.5	17	61g
FD-VOT-91	75	20	12.9	M10 x 1.5	17	65g
FD-1085	85	30	10.9	M10 x 1.5	17	69g
FD-10100	100	28	10.9	M10 x 1.5	17	70g

Part Number	Length	Thread Length	Grade	Pitch	Spanner Size	Weight

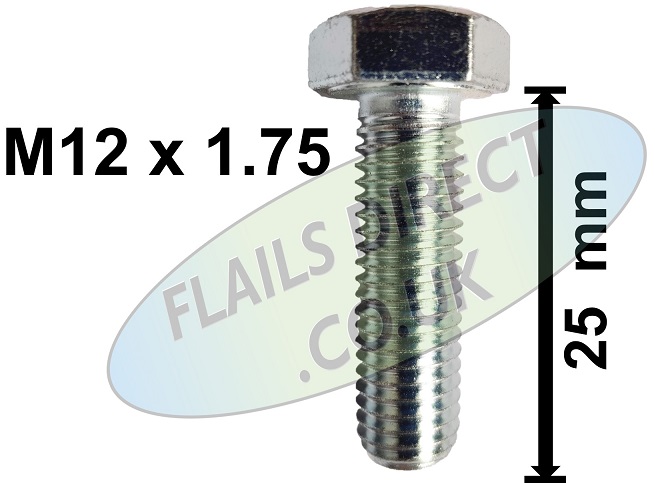

FD-1225 (Set Screw)	25	25	8.8	M12 x 1.75	19	51g

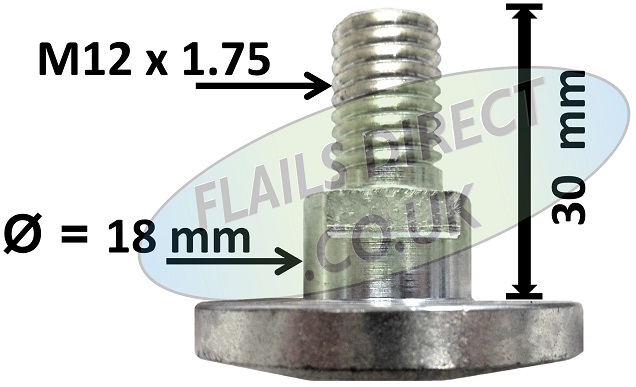

FD-1230 (Set Screw)	30	30	8.8	M12 x 1.75	19	50g
FB-701010	30	30	8.8	M12 x 1.5	Coach Bolt	30g
RV-1235	35	20	12.9	M12 x 1.25	19	60g
FD-1240 (Set Screw)	40	34	10.9	M12 x 1.75	19	65g
FD-SPE-07BQ	40	16	10.9	M12 x 1.5	19	64g

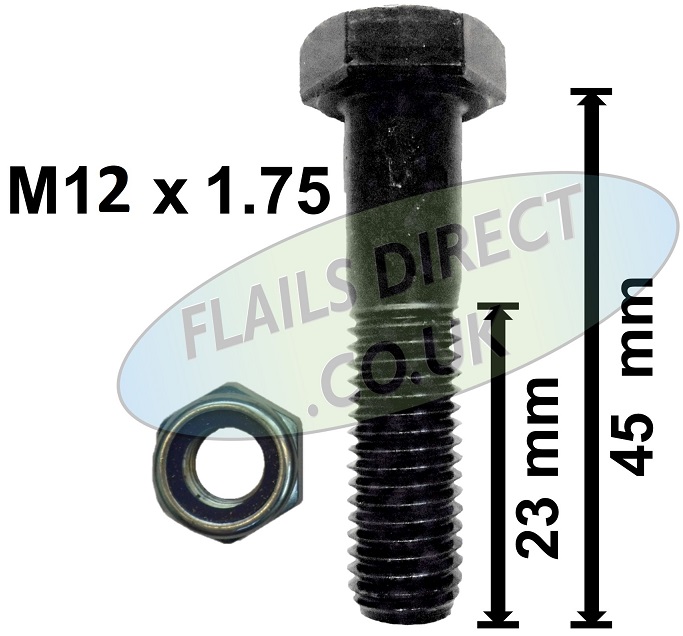

FD-1245-1	45	23	10.9	M12 x 1.75	19	70g
FD-1250-1	50	32	10.9	M12 x 1.75	19	72g
FD-1260-1	60	35	10.9	M12 x 1.75	19	80g
FD-1265-1	65	33	10.9	M12 x 1.75	19	85g

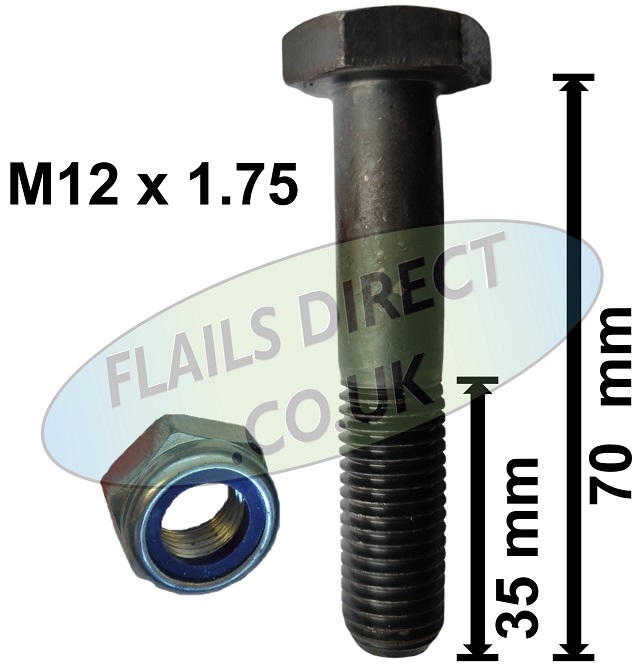

FD-1270-1	70	35	10.9	M12 x 1.75	19	90g

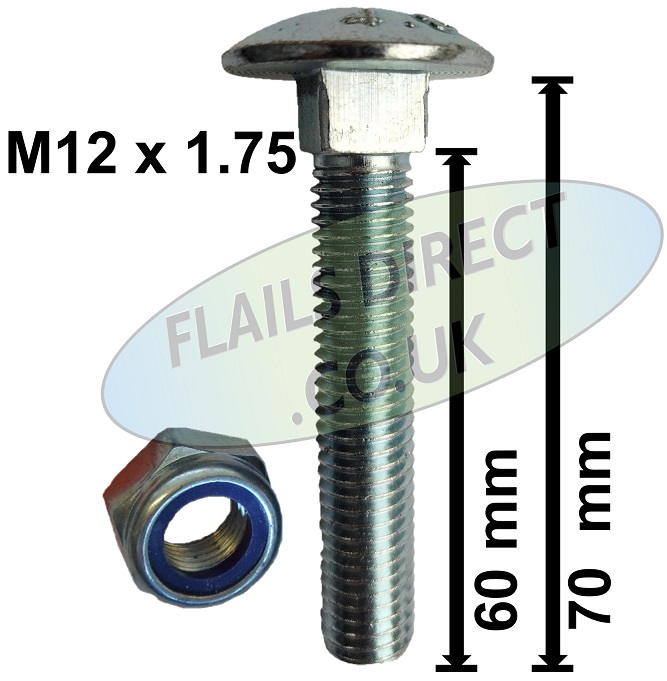

FD-1270CB	70	60	4.8	M12 x 1.75	Coach Bolt	95g
FD-1277	77	18	10.9	M12 x 1.75	19	97g
FD-1280-1	80	34	10.9	M12 x 1.75	19	80g
FD-PER-91	60	20	10.9	M12 x 1.25	19	83g
FD-SPE-06	72	38	10.9	M12 x 1.75	Allen Key head	93g

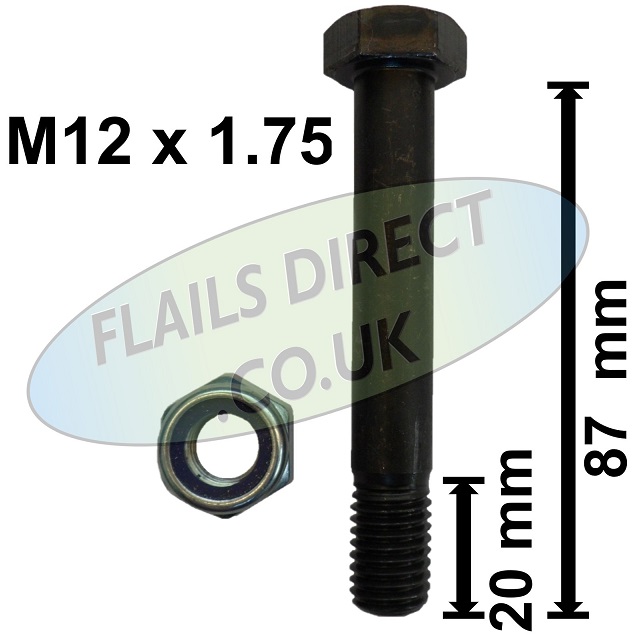

FD-1287	87	20	8.8	M12 x 1.75	19	90g
FD-1291	90	35	12.9	M12 x 1.75	19	106g
FD-12100-1	100	33	10.9	M12 x 1.75	19	120g

Part Number	Length	Thread Length	Grade	Pitch	Spanner Size	Weight

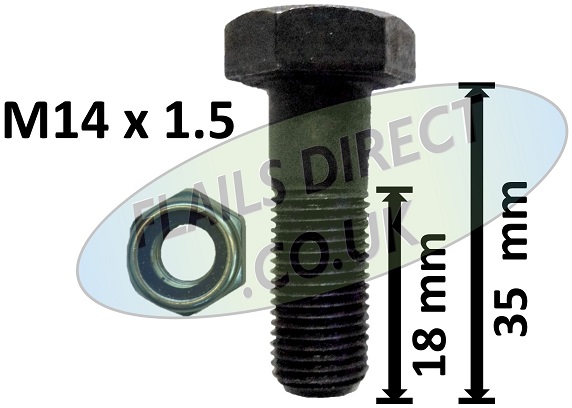

FD-1425	25	25	8.8	M14 x 1.5	22	53g

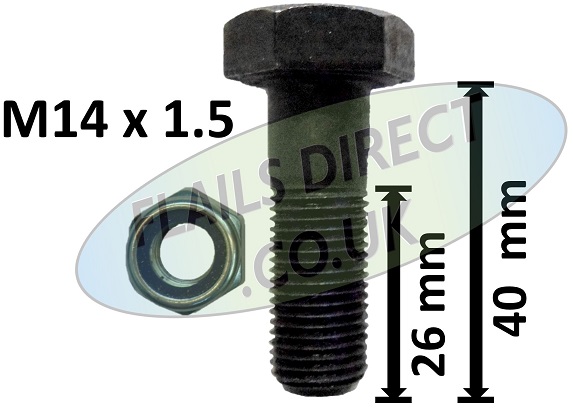

RV-1440	40	26	12.9	M14 x 1.5	24	98g
FD-1450	50	34	12.9	M14 x 1.5	22	115g

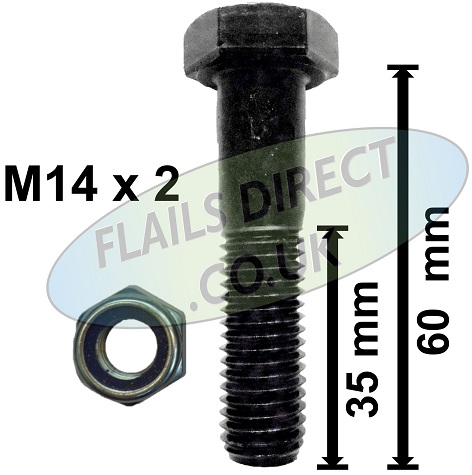

FD-1460	60	35	10.9	M14 x 2	22	110g
FD-1470-1	70	36	10.9	M14 x 1.5	22	124g
FD-1480	80	38	10.9	M14 x 2	22	136g

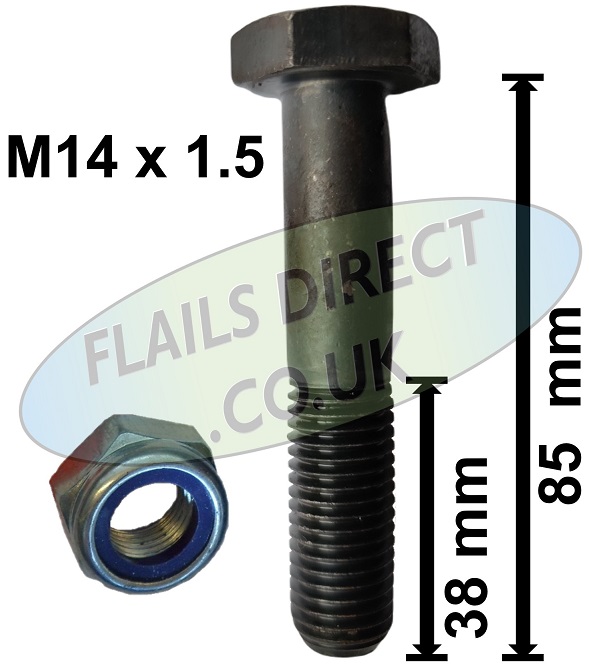

FD-1485	85	38	10.9	M14 x 1.5	22	143g
FD-1496	96	17	10.9	M14 x 1.5	22	175g
FD-TUR-91Q	91	20	12.9	M14 x 2	22	150g
FD-14100	100	40	10.9	M14 x 2	22	160g
FD-14110Q	110	29	10.9	M14 x 1.5	22	175g
FD-14120	120	38	8.8	M14 x 2	22	188g
FD-14130	130	43	10.9	M14 x 2	22	190g
FD-14140	140	47	10.9	M14 x 2	22	205g

Part Number	Length	Thread Length	Grade	Pitch	Spanner Size	Weight
FB-701015	40	40	10.9	M16 x 2	Coach Bolt / Left Handed Thread	100g
FB-701017	40	40	10.9	M16 x 2	Coach Bolt	100g

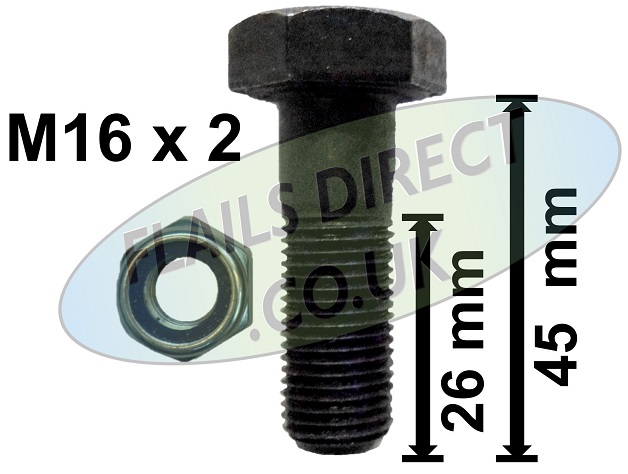

FD-1645	45	26	10.9	M16 x 2	24	130g
FB-1645csk	45	35	10.9	M16 x 2	Allen Key head	100g
FD-1650	50	40	12.9	M16 x 1.5	24	100g
RV-1652	52	25	12.9	M16 x 1.5	24	140g

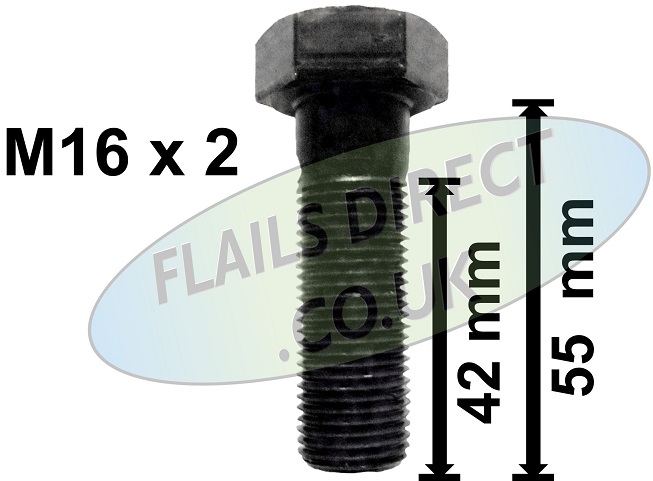

FD-1655	55	42	8.8	M16 x 2	24	145g

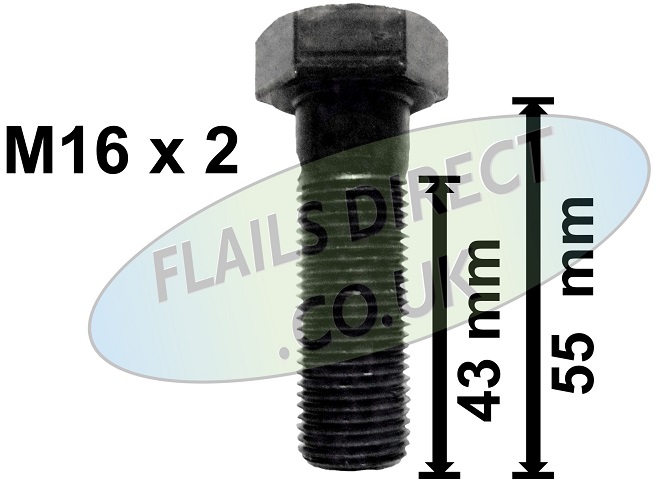

FD-1655-1	55	43	12.9	M16 x 2	24	142g
FD-1660	60	45	10.9	M16 x 2	24	150g

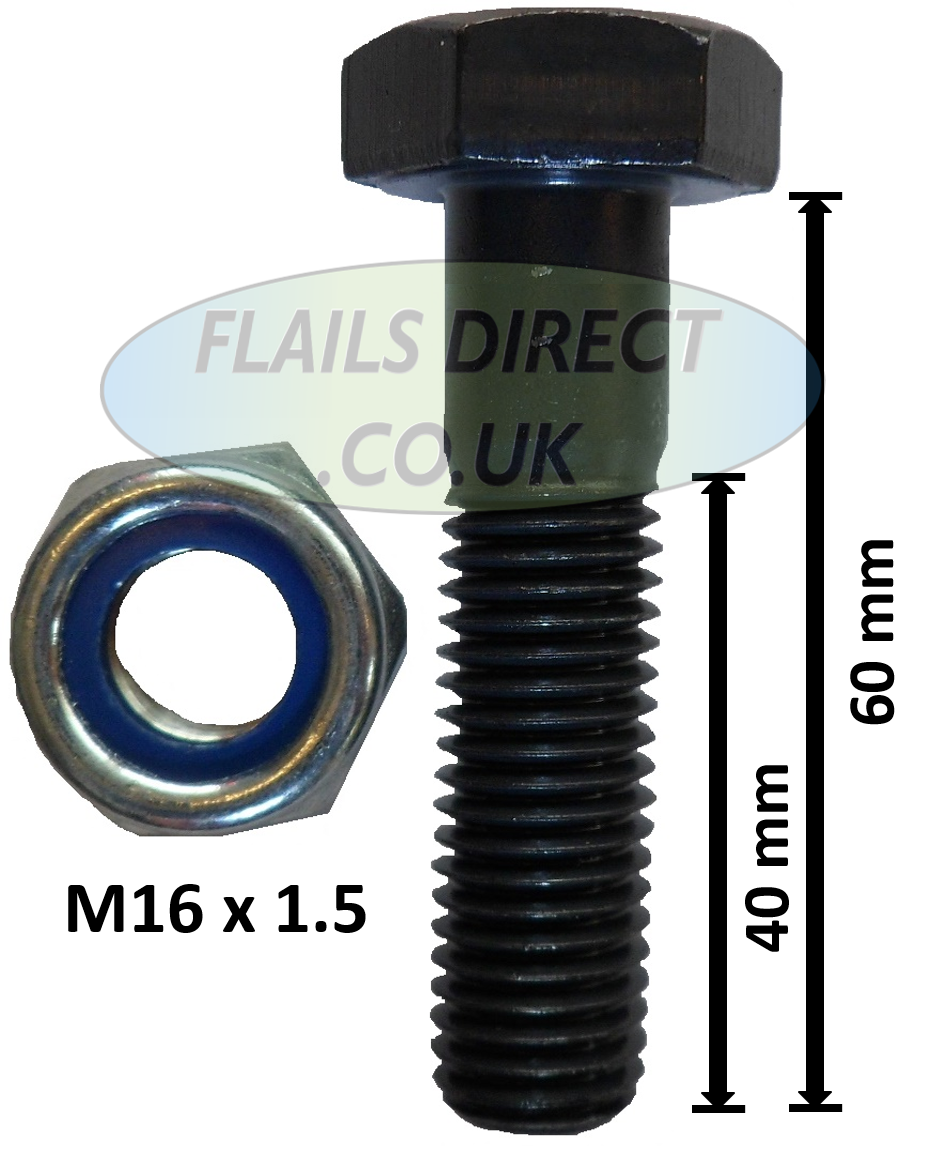

RV-1660	60	40	12.9	M16 x 1.5	24	150g

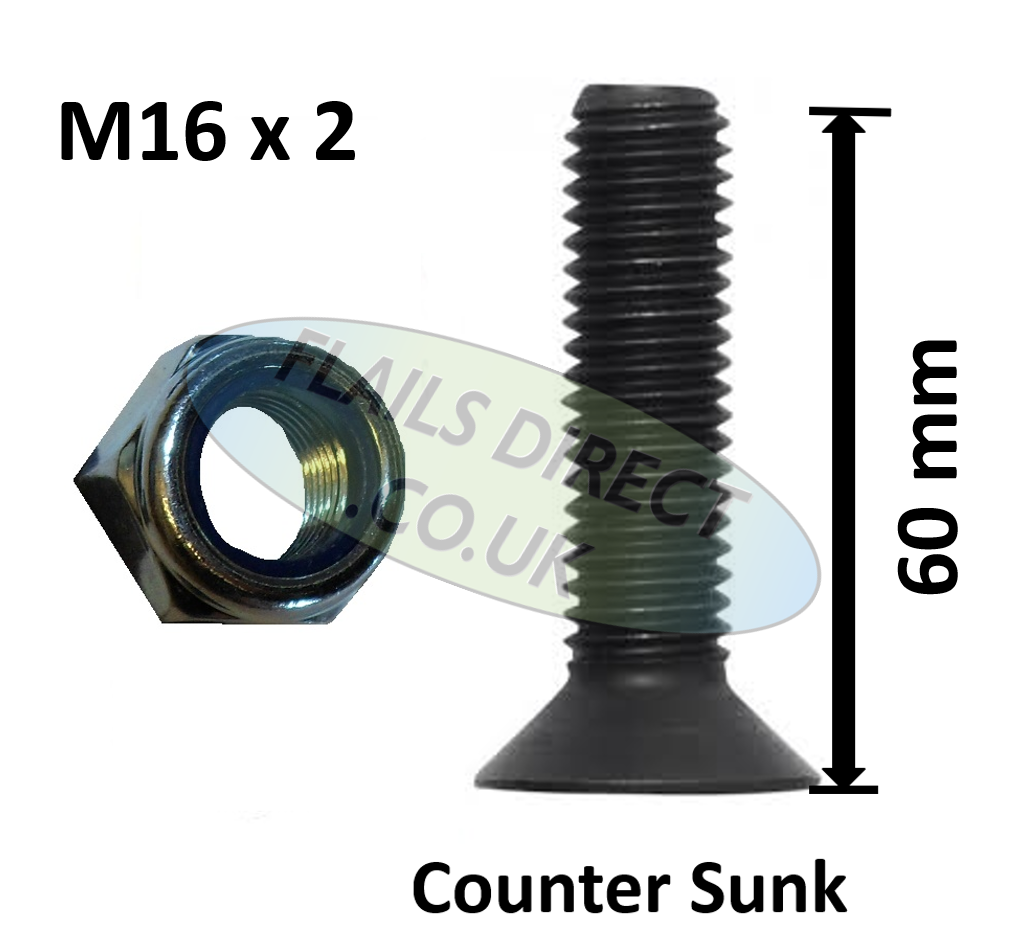

FB-1660csk	60	50	10.9	M16 x 2	Allen Key head	122g
RV-1665	65	40	12.9	M16 x 1.5	24	170g
FD-1670	70	40	10.9	M16 x 2	24	185g
FD-1680	80	43	10.9	M16 x 2	24	186g
FD-1680R	80	40	10.9	M16 x 1.5	24	182g

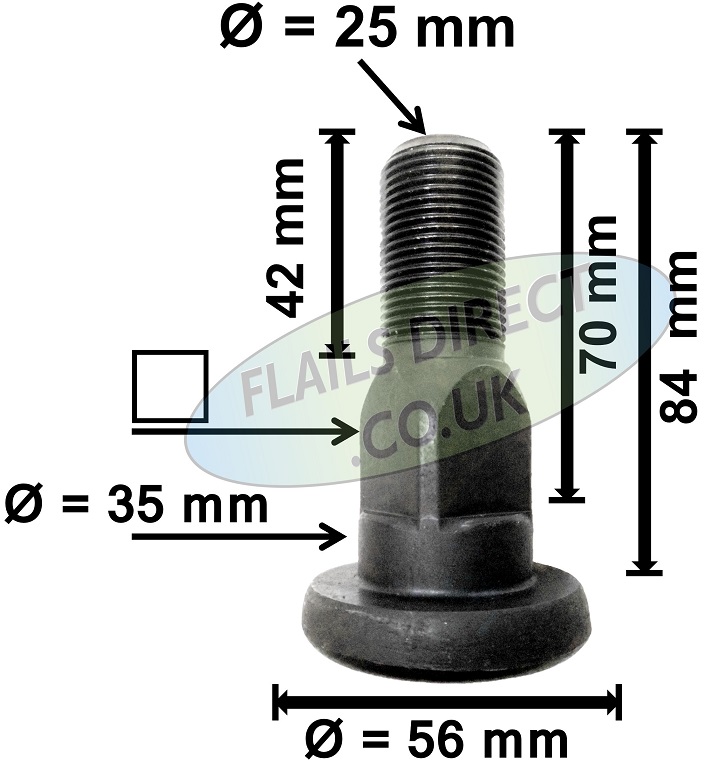

FD-1684	84	21	10.9	5/8" UNF	24	190g
FD-1685	85	22	10.9	M16 x 1.5	27	204g
FD-CON-0842Q	85	22	10.9	M16 x 1.5	24	200g
FD-SEP-91Q	90	22	10.9	M16 x 1.5	27	201g
FD-1690	90	28	10.9	M16 x 2	24	200g
FD-1691	91	22	10.9	M16 x 2	24	202g
FD-CON-0842EQ	95	40	10.9	M16 x 1.5	24	213g
FD-16100	100	40	10.9	M16 x 2	24	215g
FD-16101	100	30	10.9	M16 x 2	27	230g

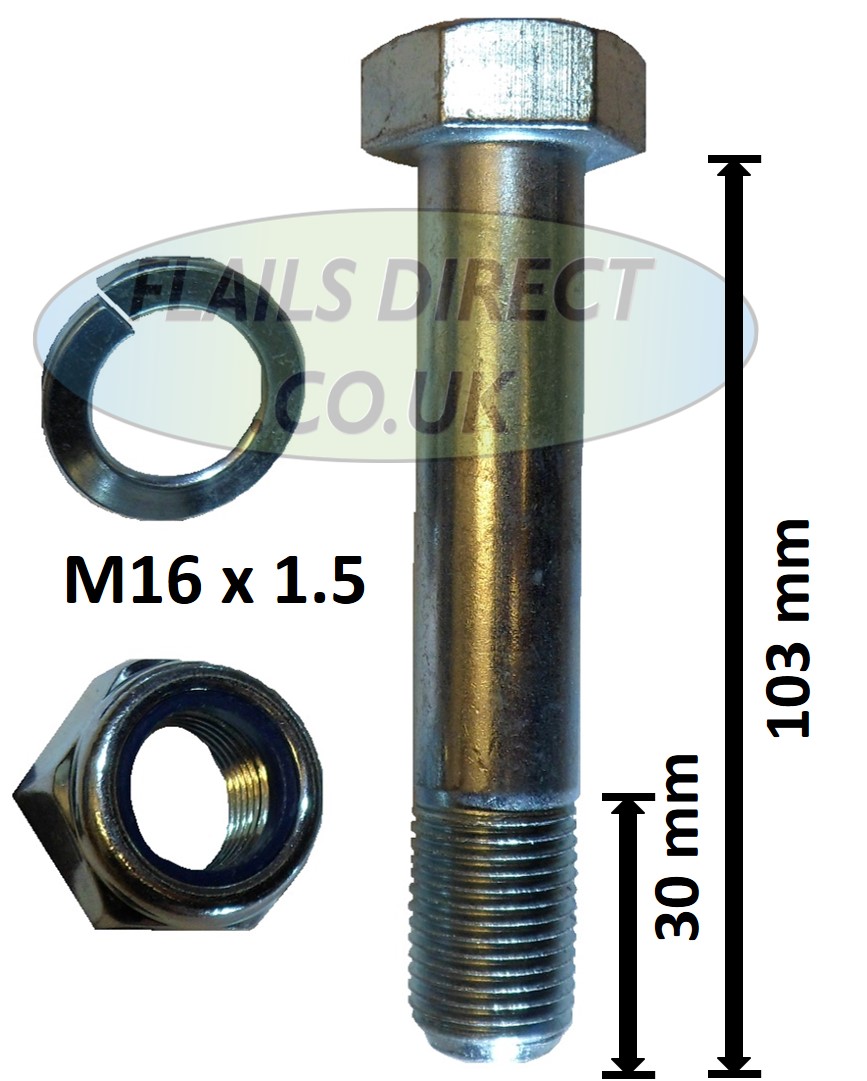

FD-CON-0842SQ	103	30	10.9	M16 x 1.5	24	235g
FD-16110	110	41	10.9	M16 x 1.5	24	230g
FD-16115-3	115	30	10.9	M16 x 1.5	24	240g

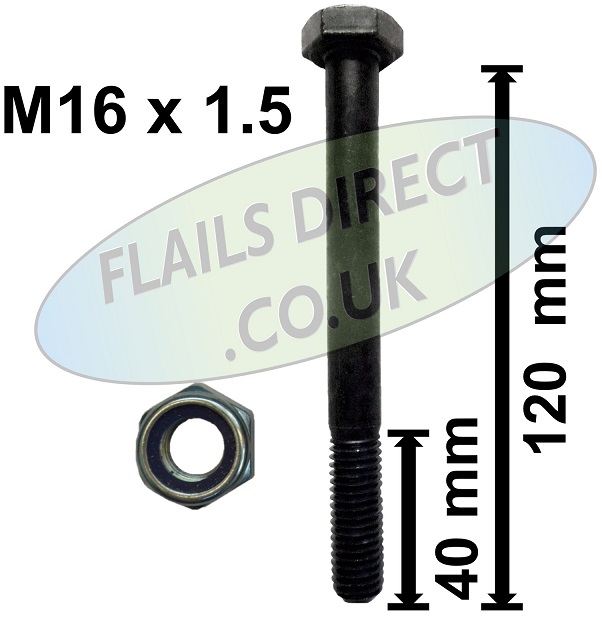

FD-16120-1	120	40	10.9	M16 x 1.5	24	246g
FD-16130	130	50	10.9	M16 x 2	24	200g

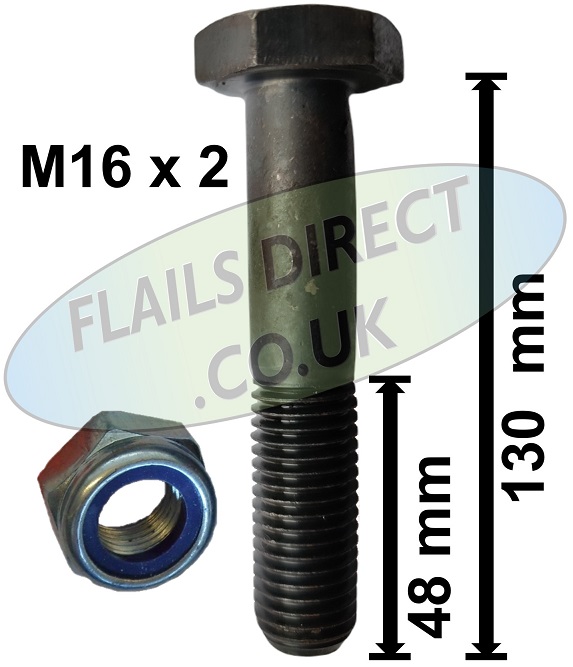

FD-16131	130	48	10.9	M16 x 2	24	260g
FD-16132	130	28	10.9	M16 x 2	24	265g

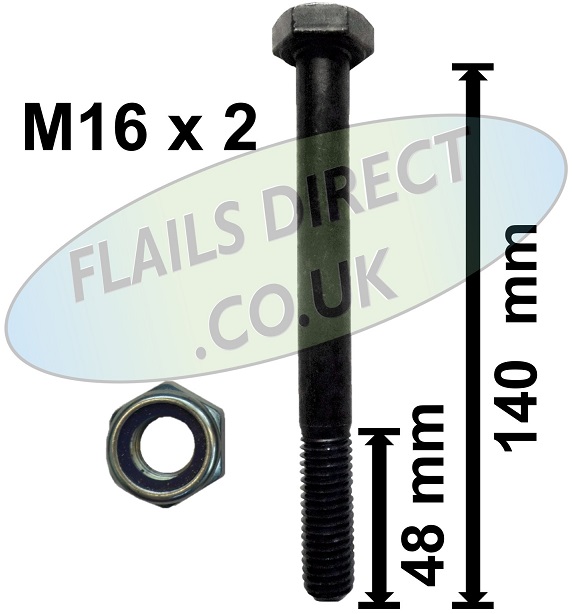

FD-16140	140	48	8.8	M16 x 2	24	280g

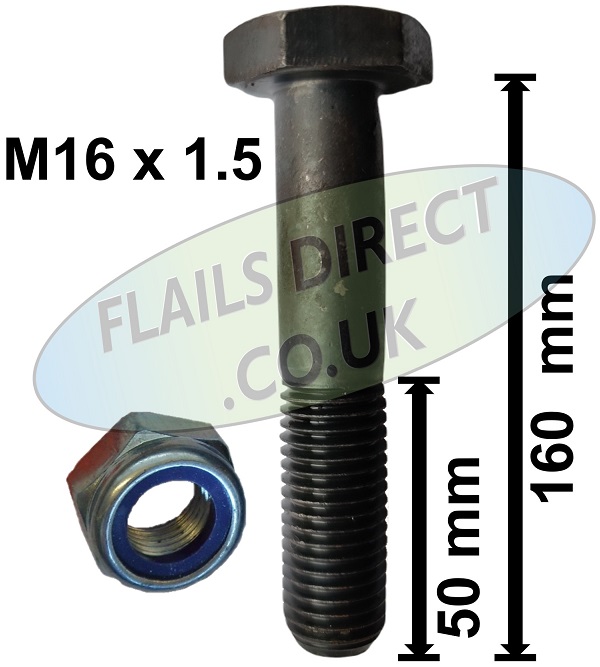

FD-16160	160	50	10.9	M16 x 1.5	24	300g
FD-16200	200	48	8.8	M16 x 2	24	368g
FD-ECO-03	86	42	10.9	M16 x 2	Coach bolt	210g
FD-HUM-95	58	21	10.9	M16 x 2	27	175g

Part Number	Length	Thread Length	Grade	Pitch	Spanner Size	Weight
FD-1860csk	60	50	10.9	M18 x 2	Allen Key head	160g
FD-1875	75	45	8.8	M18 x 2.5	27	200g

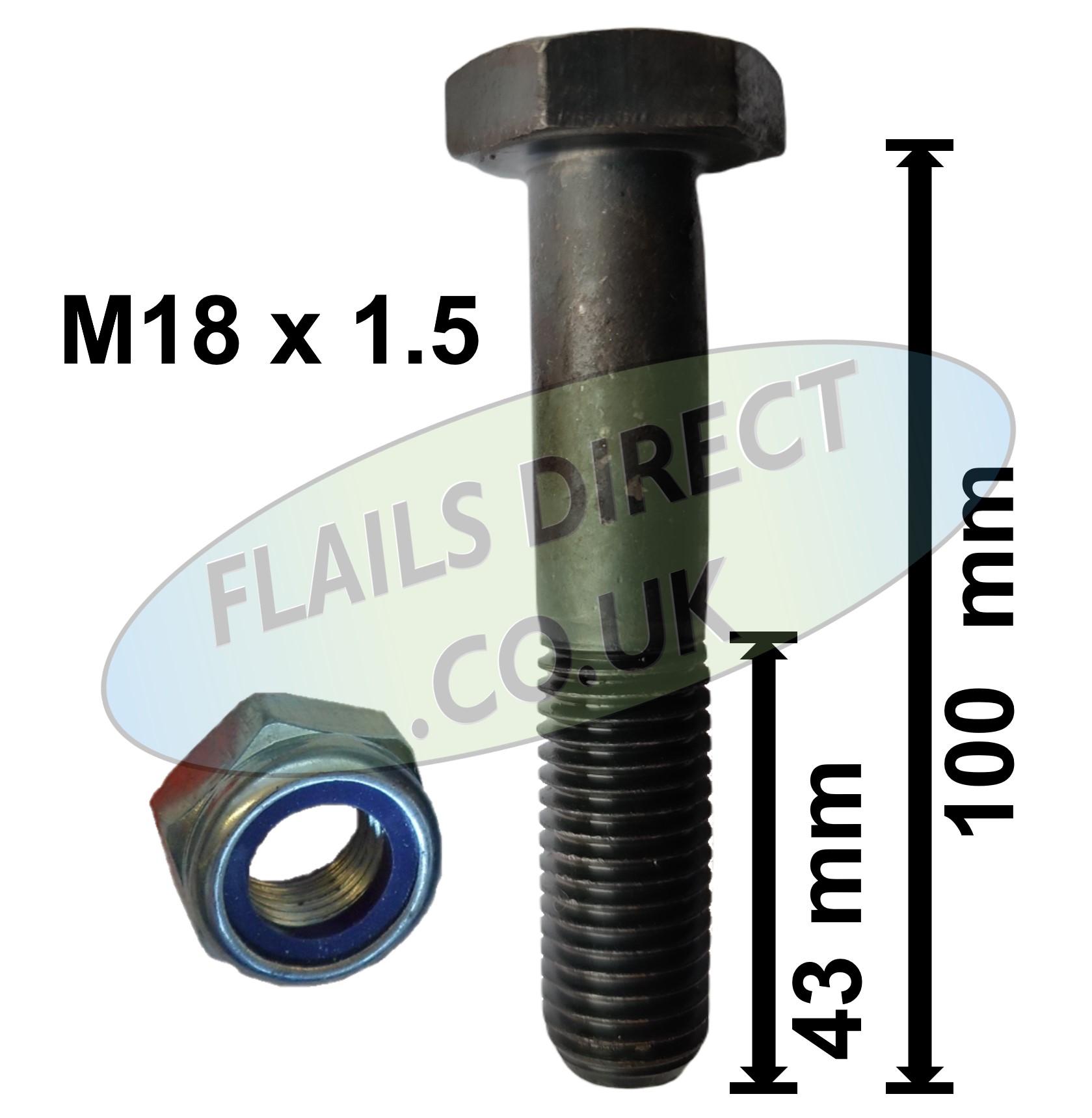

FD-SEP-03BQ	100	43	12.9	M18 x 1.5	27	297g
FD-18100	100	50	10.9	M18 x 1.5	27	285g
FD-18110	110	50	10.9	M18 x 1.5	27	295g

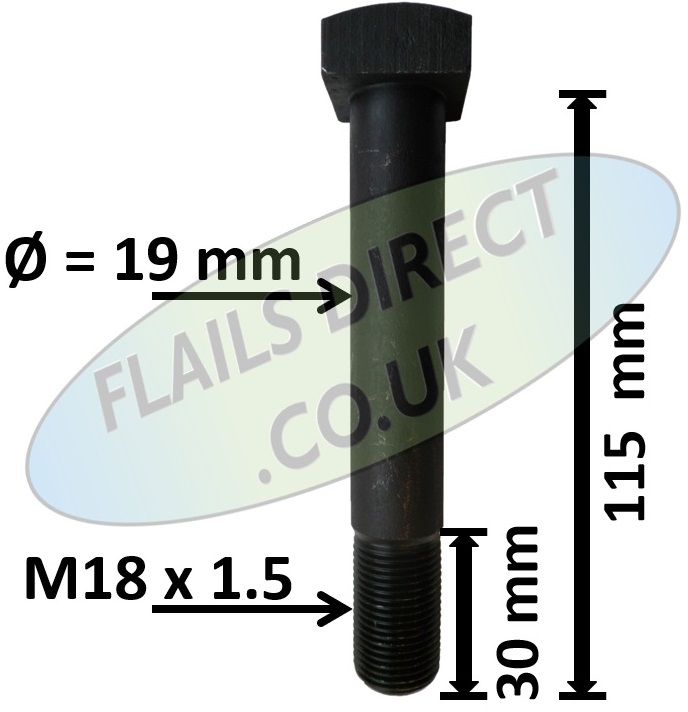

VTQ27M18/3921Q	115	30	10.9	M18 x 1.5	27	348g

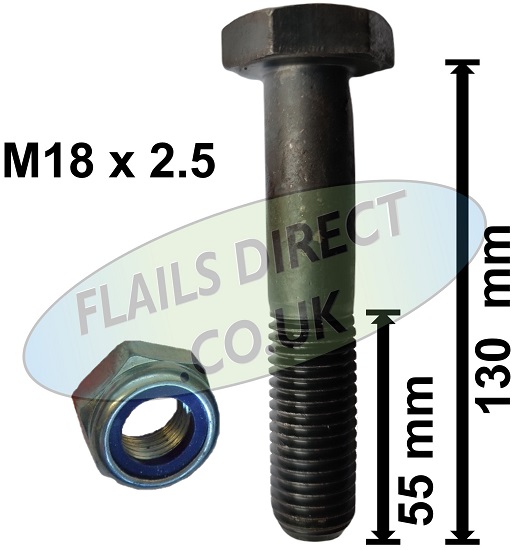

FD-18130	130	55	10.9	M18 x 2.5	27	338g
FD-18131	130	23	10.9	M18 x 1.5	27	345g
FD-18140	140	57	10.9	M18 x 2.5	27	340g

Part Number	Length	Thread Length	Grade	Pitch	Spanner Size	Weight
FD-BER-008	69	69	12.9	M20 x 1.5	30	250g
FB-2070csk	70	60	10.9	M20 x 2.5	Allen Key Head	218g
FD-2080	80	48	10.9	M20 x 1.5	30	315g
FD-ven-03b	90	60	10.9	M20 x 1.5	Socket Head Cap/Allen Key Head	315g
FD-2092	90	42	10.9	M20 x 2.5	30	330g
FD-20100	100	50	10.9	M20 x 2.5	30	350g
FD-20110	110	50	10.9	M20 x 2.5	30	380g
FD-20120	120	50	10.9	M20 x 2.5	30	410g

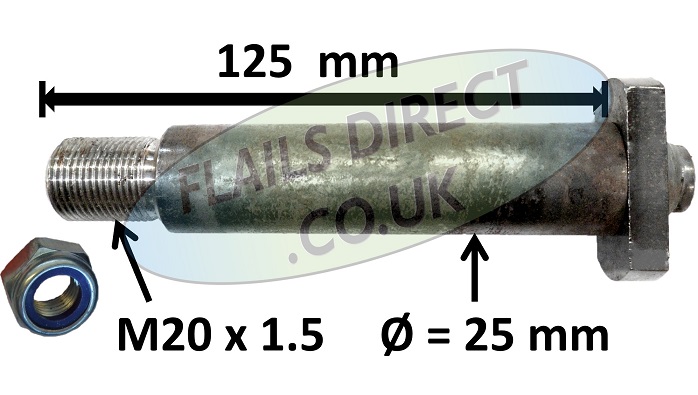

FD-20121	120	53	10.9	M20 x 1.5	30	350g
FD-20120h	120	35	10.9	M20 x 2.5	32	417g
FD-20127	127	32	10.9	M20 x 2.5	30	370g
FD-20130	130	55	10.9	M20 x 2.5	30	425g

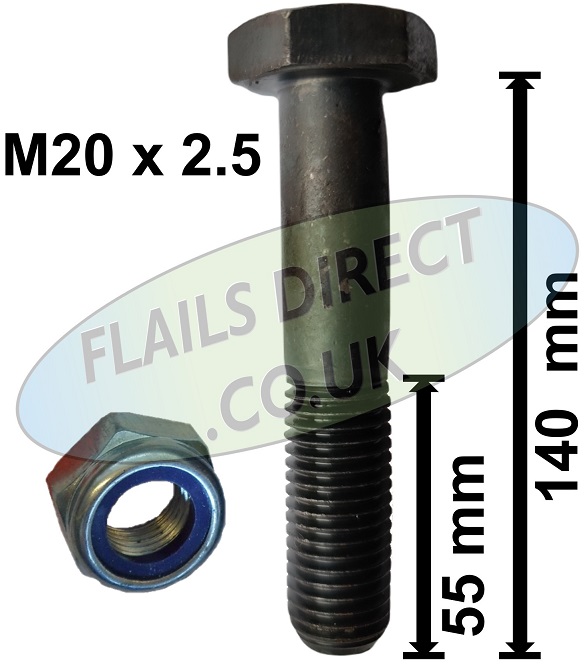

FD-20140	140	55	10.9	M20 x 2.5	30	450g
FD-20151	150	35	10.9	M20 x 2.5	30	497g
FD-BER-005b	160	48	10.9	M20 x 1.5	30	530g

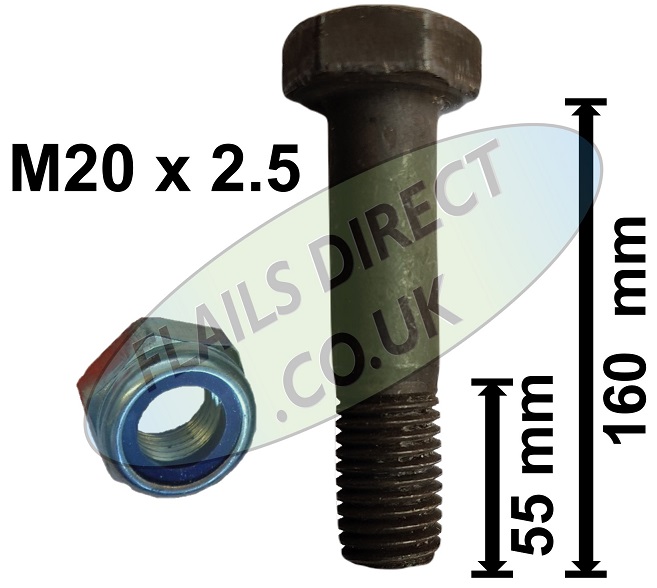

FD-20160	160	55	10.9	M20 x 2.5	30	506g
FD-20170	170	55	10.9	M20 x 2.5	30	520g

Part Number	Length	Thread Length	Grade	Pitch	Spanner Size	Weight

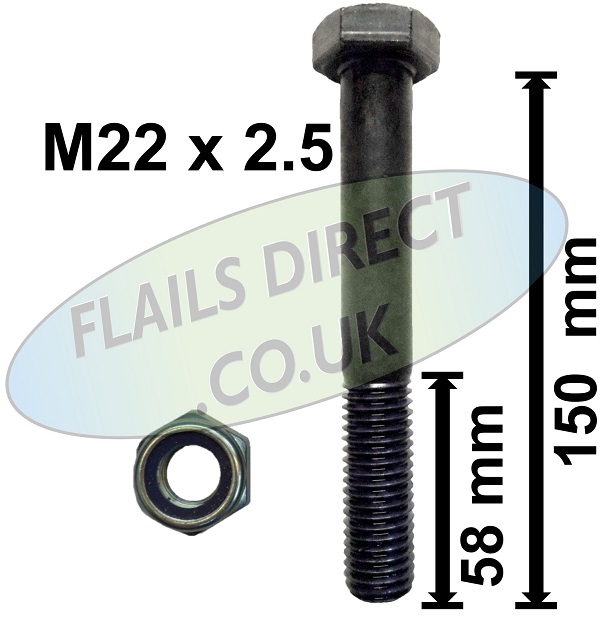

FD-22150	150	58	8.8	M22 x 2.5	32	580g

Part Number	Length	Thread Length	Grade	Pitch	Spanner Size	Weight

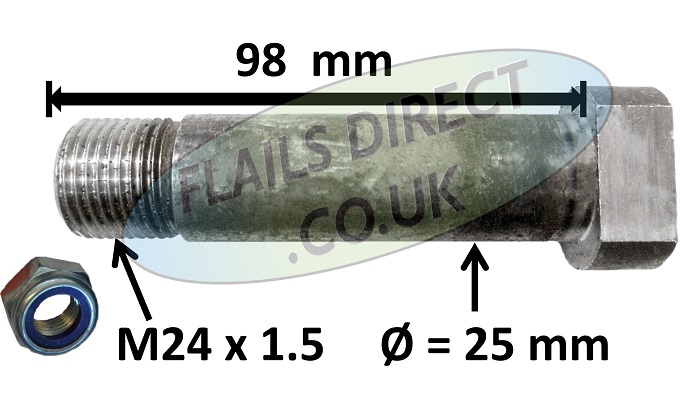

FD-2475	75	37	10.9	M24 x 3	36	390g

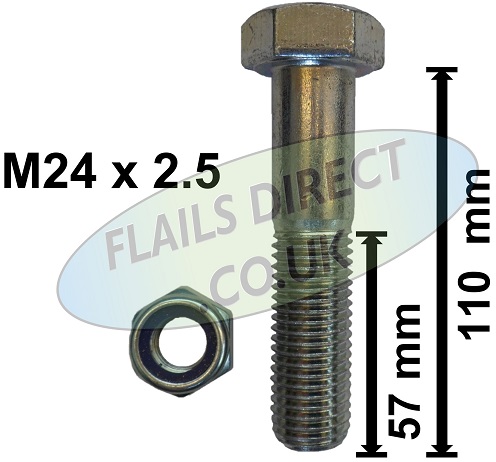

FD-24110	110	57	8.8	M24 x 2.5	36	582g

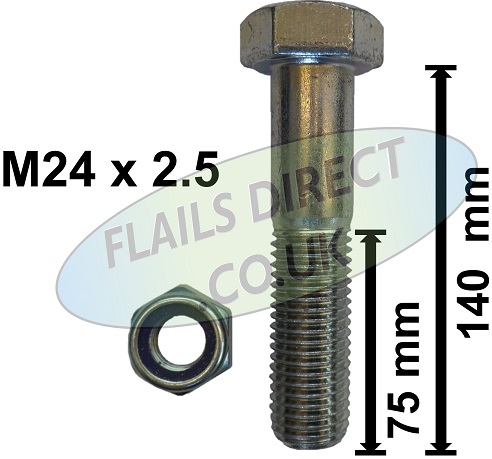

FD-24140	140	75	8.8	M24 x 2.5	36	674g

Part Number	Length	Thread Length	Grade	Pitch	Spanner Size	Weight
RV-3903	38	23	12.9	1/2" UNF	19	80g
FD-1264	64	38	8.8	1/2" UNF	19	90g
FD-1276	76	20	10.9	1/2" UNF	19	109g
FD-1288	88	20	10.9	1/2" UNF	19	100g
FD-12125	125	35	10.9	1/2" UNF	19	156g
FD-12133	133	35	8.8	1/2" UNF	19	159g
FD-RM-801/BQ	76	22	10.9	1/2" UNF	19	112g

Part Number	Length	Thread Length	Grade	Pitch	Spanner Size	Weight
FD-51632	32	11	10.9	5/16" UNF	13	21g

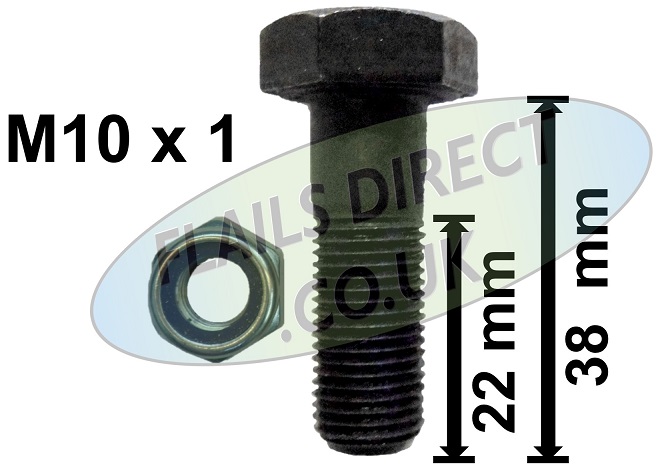

FD-51638	38	22	8.8	5/16" UNF	13	24g

Part Number	Length	Thread Length	Grade	Pitch	Spanner Size	Weight
FD-716114	33	20	12.9	7/16" UNF	16	50g

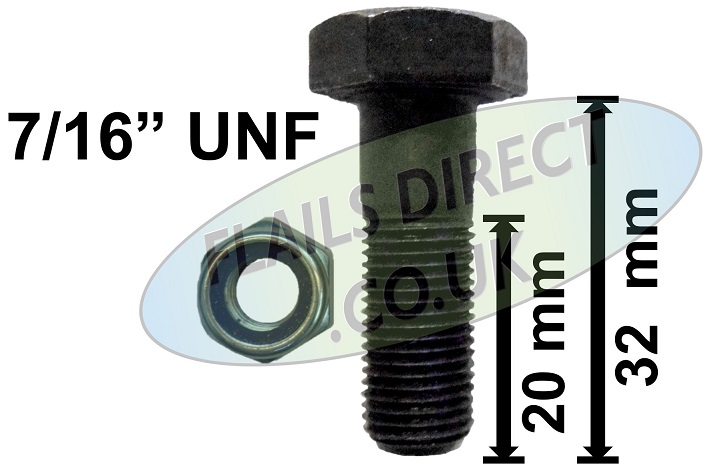

RV-71632	32	20	12.9	7/16" UNF	17	50g
RV-71635	35	22	12.9	7/16" UNF	17	56g

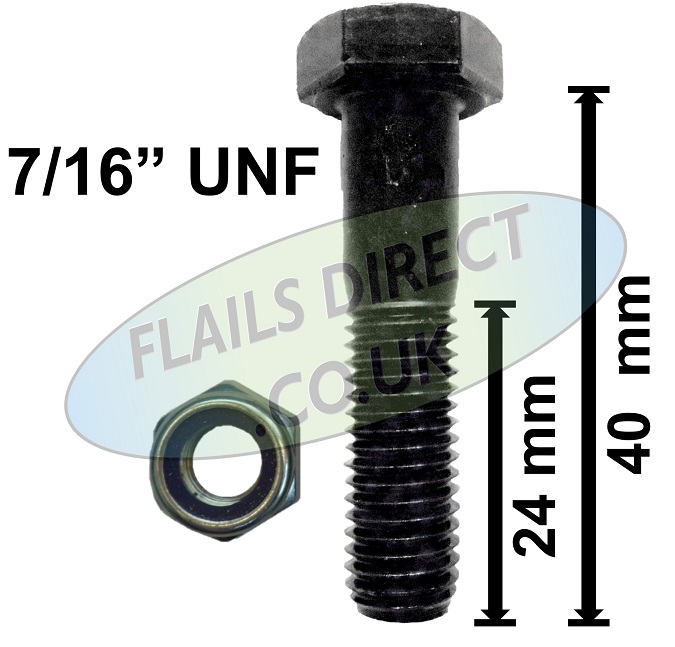

RV-71640	40	24	12.9	7/16" UNF	17	60g
FD-FEI-91	63	32	8.8	7/16" UNF	16	63g
FD-71680	80	20	10.9	7/16" UNF	16	79g
FD-71682	82	20	10.9	7/16" UNF	16	80g
