Y Round Hole Flails

Y Flails With Round Holes

Please use these navigation links to find the flail you have or require.
All measurements are in mm's.

Please click on the 'Part Number' inside the table to see a picture and profile of the selected part.

Please contact us for prices and further information about our products.
Please note, we do not supply genuine flails & parts unless indicated.
Any indicated OEM part numbers are used for reference only.
Dimensions and weights are approximate.

Upto 39mm Width

Part Number	Width	Thickness	Hole Size	Length	Kick out
FD-agr-51	20	2	8.5	120	12

FD-tor-52-0	20	3	8	66	19

FD-mal-01	30	3	11	130	28

FD-ore-01	30	4	10.5	106	28

FD-bcs-20	30	4	12.5	100	37

FD-mot-01	32	2	8.5	125	18

FD-stm-01	32	2.5	10.5	125	20

FD-sca-01q	32	3	10.5	110	16

FD-jac-01	32	3	14.5	68	18

FD-bev-01	32	5	10.5	98	26

FD-bom-51A	34	3	10	72	20

FD-zap-12	35	4	10.5	98	42

FD-agm-21	35	5	14.5	80	25

FD-del-01	35	5	14.5	93	39

FD-agm-04	35	5	14.5	114	42

FD-del-02	35	5	14.5	115	39

FD-kyo-01	35	6	11	127	35

FD-dop-51	35	6	20	63	30

40mm - 49mm Width

Part Number	Width	Thickness	Hole Size	Length	Kick out
FD-ste-02	40	4	10	90	25

FD-agr-54	40	4	12	100	34

FD-crn-02	40	5	10.5	125	38

FD-pal-06	40	5	12.5	108	43

FD-crn-01	40	5	12.5	130	39

FD-mal-15	40	5	14.5	138	40

FD-ind-188	40	5	14.5	140	53

FD-rou-54	40	5	15	132	43

FD-drg-09	40	5	16.5	106	41

FD-enr-02	40	6	13	107	43

FD-fei-54	40	6	12.5	130	40

FD-car-52	40	6	13	95	37

FD-zap-13	40	6	14.5	105	42

FD-pro-02	40	6	16	125	50

FD-duc-02	40	6	18.5	95	39

FD-fln-02	40	8	16.5	120	51

FD-fei-34	40	8	16.5	126	60

FD-fei-45	40	8	16.5	130	40

FD-nob-41	40	8	16.5	130	41

FD-wet-01	40	8	16.5	160	60

FD-nob-02	40	8	16.5	175	60

FD-nob-10	40	8	16.5	180	42

FD-nob-16	40	8	16.5	130	42

FD-sim-15	40	8	16.5	110	50

FD-cae-13	40	8	20.5	110	53

FD-agm-03	40	8	20.5	120	52

FD-ors-12	40	8	20.5	150	39

FD-cle-01	40	8	22.5	110	73

FD-agm-29	40	10	14	105	53

FD-mal-29	40	10	14.5	131	41

FD-peg-37	40	10	16.5	100	39

FD-pal-17	40	10	16.5	105	39

FD-mal-30	40	10	16.5	130	50

FD-aed-08	40	10	16.5	135	53

FD-bre-18	40	10	16.5	125	54

FD-tie-08	40	10	16.5	125	72

FD-bre-21	40	10	16.5	110	52

FD-drg-04	40	10	16.5	110	38

FD-ind-09	40	10	16.5	105	39

FD-mal-27	40	10	16.5	135	42

FD-zzz-37	40	10	17.5	105	29

FD-zzz-13	40	10	18.5	100	27

FD-drg-05	40	10	18.5	110	38

FD-sim-14	40	10	20	110	54

FD-mea-11	40	10	20.5	130	45

FD-bem-04	40	12	16.5	112	50

FD-brn-02	45	5	20.5	150	42

FD-nob-27	45	8	16.5	125	56

FD-mas-55	45	8	16.5	136	65

FD-mea-03	45	10	16.2	115	40

50mm - 59mm Width

Part Number	Width	Thickness	Hole Size	Length	Kick out
FD-hum-01	50	6	16.5	135	46

FD-con-52	50	6	27	143	50

FD-ind-427	50	8	14.5	120	52

FD-fei-60	50	8	16	130	42

FD-hum-02	50	8	16.5	135	46

FD-drg-07	50	8	18	120	84

FD-drg-11	50	8	18.5	140	72

FD-cae-05	50	8	20	100	92

FD-ind-46	50	8	20.5	120	53

FD-csm-03	50	8	20.5	145	38

FD-hym-02	50	8	20.5	156	41

FD-brt-07	50	8	25.5	108	68

FD-riv-51	50	8	25.5	220	50

FD-mea-10	50	10	16.5	115	72

FD-her-02	50	10	16.5	118	72

FD-agc-13	50	10	16.5	130	60

FD-cel-25	50	10	16.5	125	53

FD-sic-12	50	10	16.5	125	70

FD-mal-14	50	10	16.5	190	58

FD-mea-02	50	10	18.5	125	72

FD-lag-08	50	10	18.5	150	44

FD-mas-70	50	10	20.5	115	61

FD-nob-12	50	10	20.5	130	55

FD-teh-101	50	10	20.5	134	53

FD-zap-08	50	10	20.5	180	62

FD-how-48	50	10	25.5	100	60

FD-how-49	50	10	25.5	120	60

FD-zzz-36	50	10	25.5	130	61

FD-oma-06	50	10	25.5	140	55

Over 60mm Width

Part Number	Width	Thickness	Hole Size	Length	Kick out
FD-pro-01	60	6	25.5	140	58

FD-lag-05	60	6	25.5	213	55

FD-ind-147	60	6	30	175	58

FD-sek-02	60	7	25.5	210	46

FD-tie-03	60	7	25.5	212	56

FD-lag-07	60	7	25.5	213	46

FD-agc-09	60	7	25.5	215	45

FD-lag-09	60	7	25.5	245	60

FD-cae-06	60	7	28.5	155	57

FD-ind-830	60	7	28.5	215	52

FD-sau-01	60	7	28.5	210	45

FD-cae-04	60	7	28.5	230	57

FD-ind-69	60	7	30	190	33

FD-ind-103	60	7	30	200	53

FD-agc-08	60	8	16.5	130	59

FD-ors-01	60	8	16.5	140	60

FD-joh-04	60	8	19.5	128	58

FD-ind-153	60	8	20.5	150	65

FD-tor-21	60	8	22.5	100	50

FD-tor-20	60	8	22.5	125	52

FD-ind-99	60	8	22.5	105	66

FD-fei-29	60	8	25.5	125	43

FD-fei-30	60	8	25.5	132	64

FD-zzz-16	60	8	25.5	120	70

FD-fei-04	60	8	25.5	145	59

FD-ind-94	60	8	25.5	125	63

FD-fei-38	60	8	25.5	143	59

FD-zzz-40	60	8	25.5	147	51

FD-art-01	60	8	25.5	150	60

FD-sau-04	60	8	25.5	150	60

FD-ind-07	60	8	25.5	150	65

FD-spi-03	60	8	25.5	182	56

FD-kid-02	60	8	25.5	190	84

FD-vig-03	60	8	25.5	200	75

FD-ind-944	60	8	25.5	202	62

FD-peg-35	60	8	25.5	204	50

FD-sic-02	60	8	25.5	204	55

FD-mas-54	60	8	25.5	210	65

FD-wer-02	60	8	25.5	215	62

FD-ors-10	60	8	25.5	225	107

FD-fei-05	60	8	25.5	240	65

FD-fei-02	60	8	25.5	245	80

FD-lag-02	60	8	25.5	245	60

FD-ors-05	60	8	26	141	45

FD-fei-51	60	8	26	145	50

FD-sim-22	60	8	26	145	60

FD-zzz-27	60	8	26	210	65

FD-nob-13	60	8	26	215	130

FD-zzz-32	60	8	26.5	155	48

FD-sau-03	60	8	28.5	145	70

FD-ber-01	60	8	28.5	193	52

FD-brt-06	60	8	28.5	205	49

FD-fan-01	60	8	28.5	225	60

FD-ind-130	60	8	28.5	225	62

FD-zzz-29	60	8	30	230	55

FD-zap-03	60	10	20.5	120	70

FD-zap-01	60	10	20.5	150	60

FD-qvg-01	60	10	25.5	125	57

FD-zzz-43	60	10	25.5	120	66

FD-agm-01	60	10	25.5	150	60

FD-tor-17	60	10	25.5	160	72

FD-bre-37	60	10	25.5	173	55

FD-nob-05	60	10	25.5	204	57

FD-bre-17	60	10	25.5	210	69

FD-tie-04	60	10	25.5	214	56

FD-brt-04	60	10	28.5	205	49

FD-uge-52	65	6	29	215	54

FD-ind-22	65	7	25	115	79

FD-taa-02	65	7	29	215	46

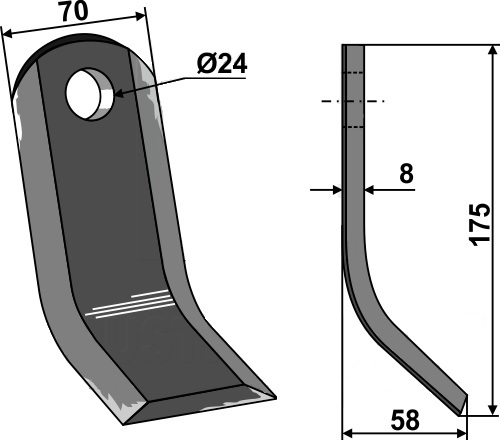

FD-ind-1935	70	8	24	175	58
