'L' Flails

All measurements are in mm's.

Please contact us for prices and further information about our products.
Please note, we do not supply genuine flails & parts unless indicated.
Any indicated OEM part numbers are used for reference only.
Dimensions and weights are approximate.

Part Number	Width	Thickness	Hole Size	Length	Kick out
FD-ind-416	35	5	14	113	47
FD-aed-10	40	10	16.5	112	68
FD-trr-01	45	8	16.5	130	52

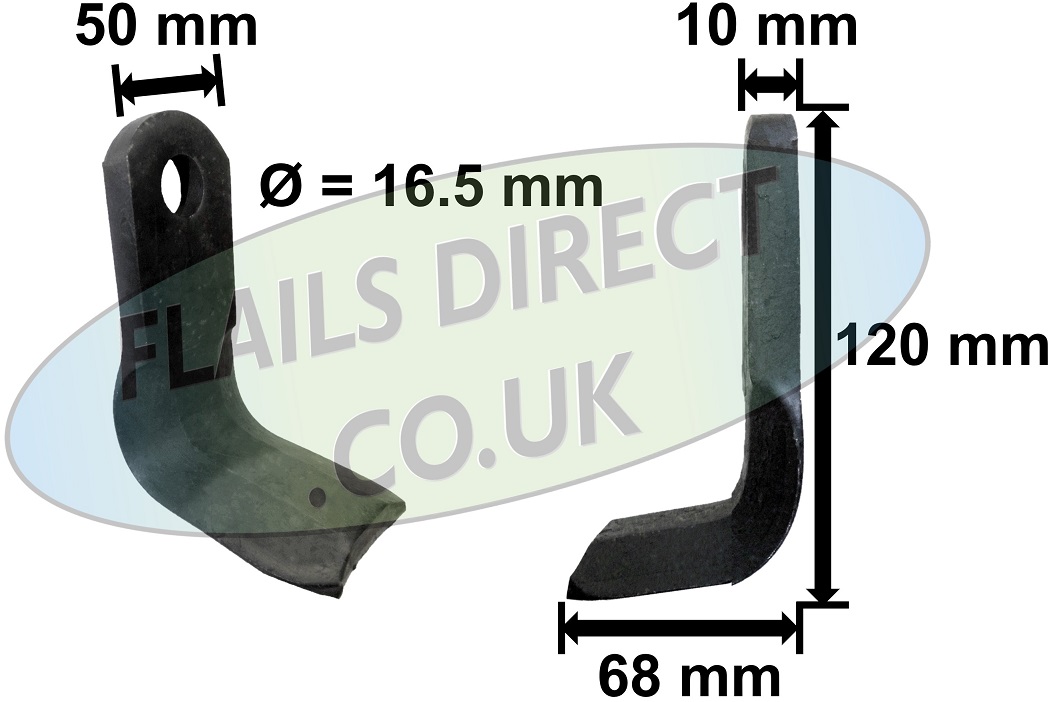

FD-sic-13	50	10	16.5	120	68
FD-pal-09	50	10	18.5	105	73
FD-zzz-38	50	10	16.5	105	73
FD-sic-01	60	8	25.5	120	67
FD-sic-03	60	8	25.5	195	57

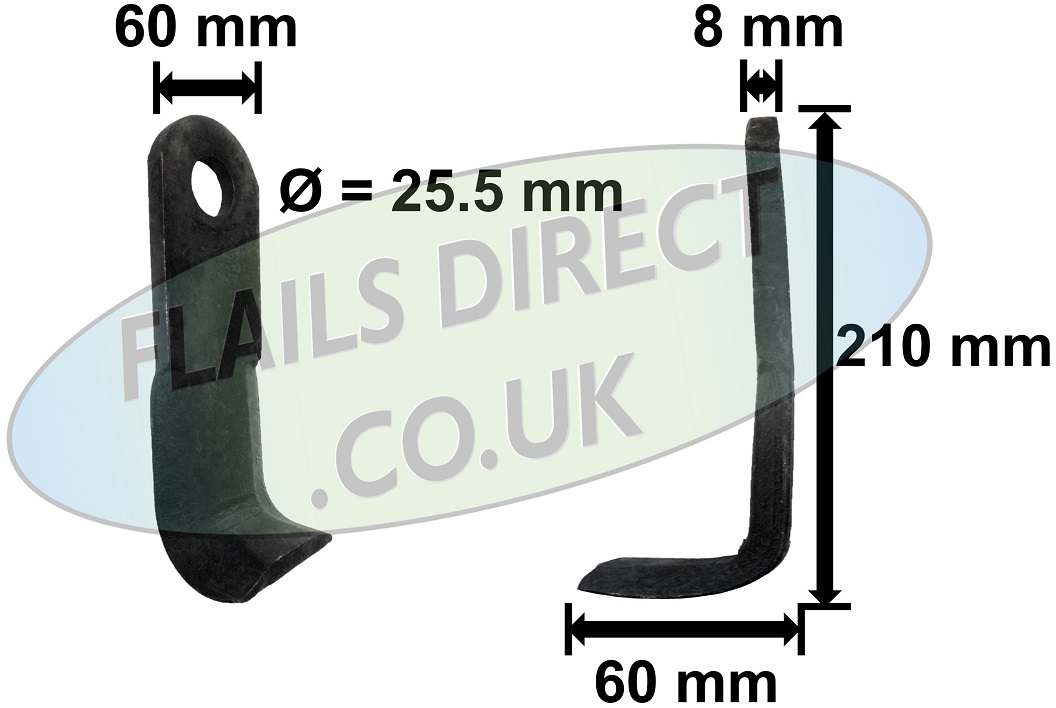

FD-trr-02	60	8	25.5	210	60
FD-fei-03	60	8	25.5	250	75
FD-agm-13	60	10	25.5	145	50

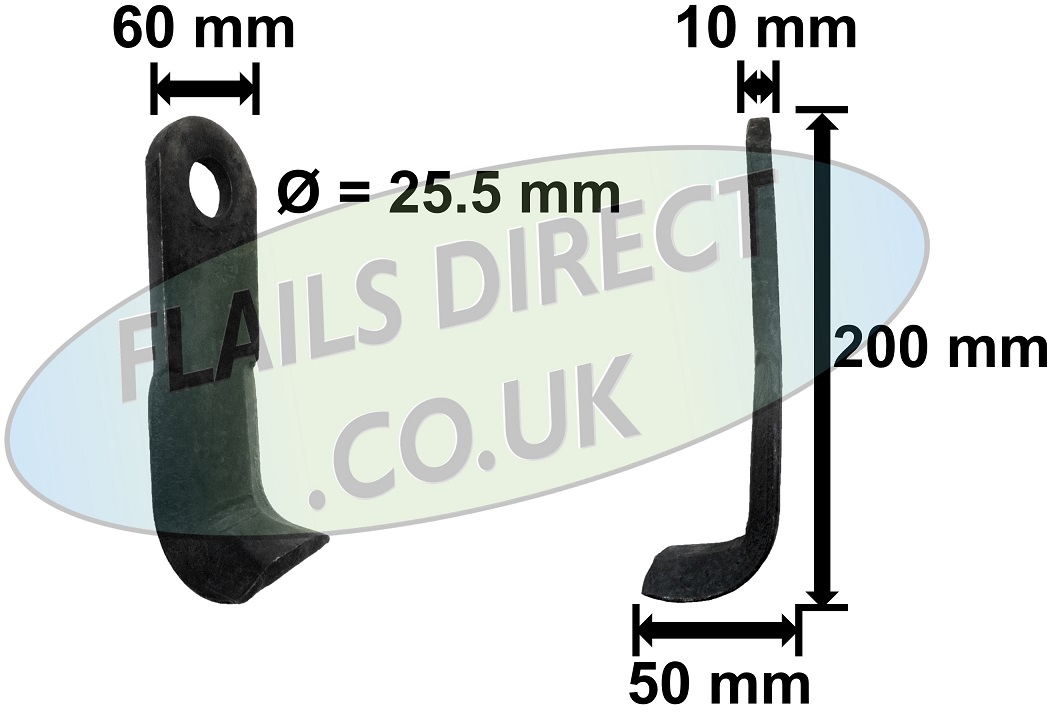

FD-nob-06	60	10	25.5	200	50
FD-ind-71	61	8	20.5	122	56
