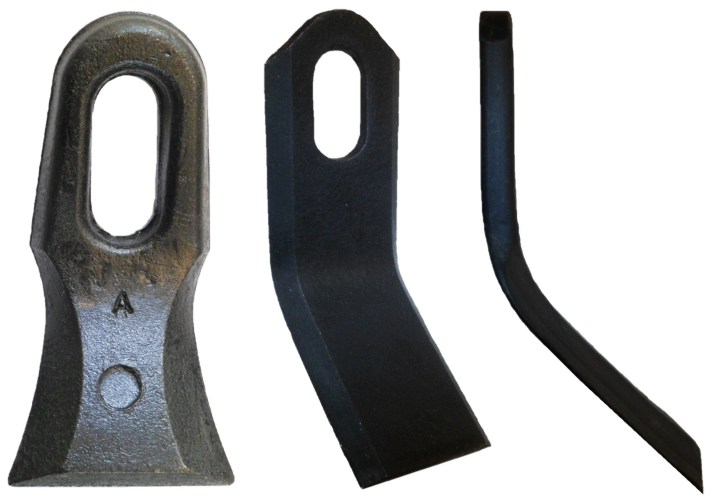

Y Flails With Slotted Holes

Please use the table below to find the flail you have or require.
All measurements are in mm's.

Please click on the 'Part Number' inside the table to see a picture and profile of the selected part.

Please contact us for prices and further information about our products.
Please note, we do not supply genuine flails & parts unless indicated.
Any indicated OEM part numbers are used for reference only.
Dimensions and weights are approximate.

Part Number	Width	Thickness	Hole Size	Length	Kick out	Stock
FD-log-01	30	4	11 x 20	65	36	✓
FD-agr-52	30	2.5	10 x 20	70	20	✗

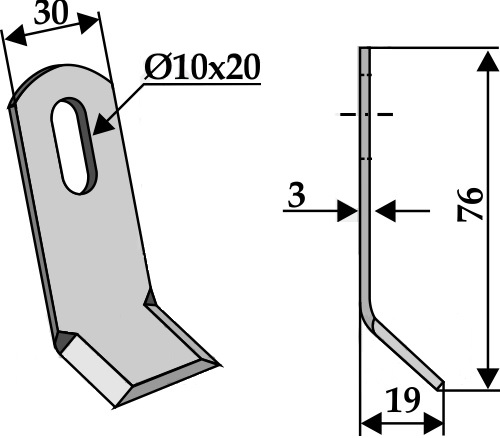

FD-fis-500	30	3	10 x 20	76	19	✗
FD-agt-90	30	3	11 x 20	78	35	✓

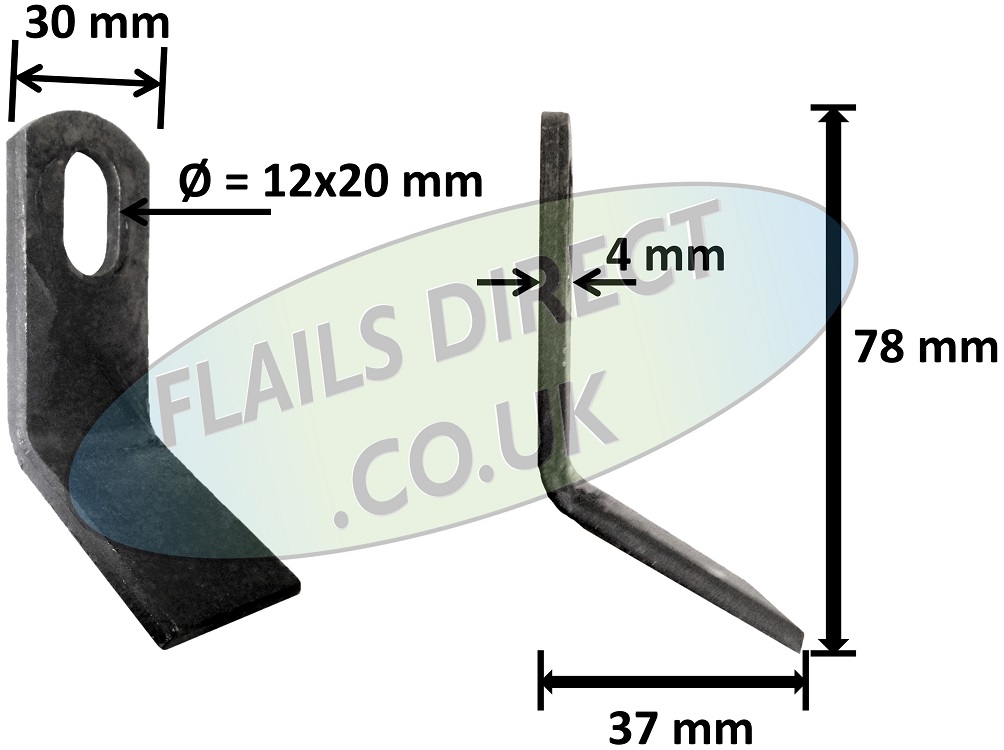

FD-agt-90hd	30	4	12 x 20	78	37	✓
FD-prz-01	30	4	14 x 29	103	25	✗

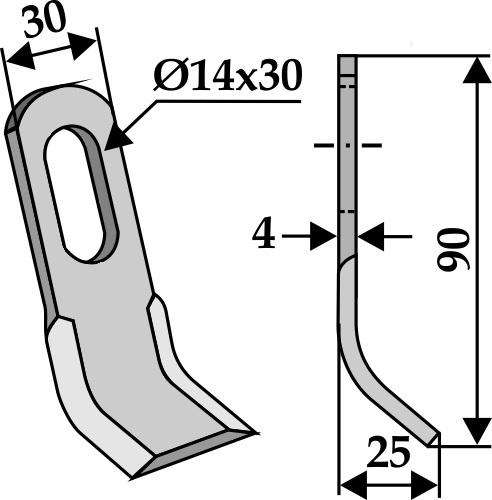

FD-ind-139	30	4	14 x 30	90	25	✓
FD-ise-98	30	4	13 x 27	102	28	✓
FD-ise-99	30	4	13 x 27	105	20	✗
FD-zzz-06	30	5	11.5 x 23	95	36	✗
FD-pro-06	30	5	14 x 29	80	42	✓
FD-ama-01	32	3	10 x 16.5	80	28	✓

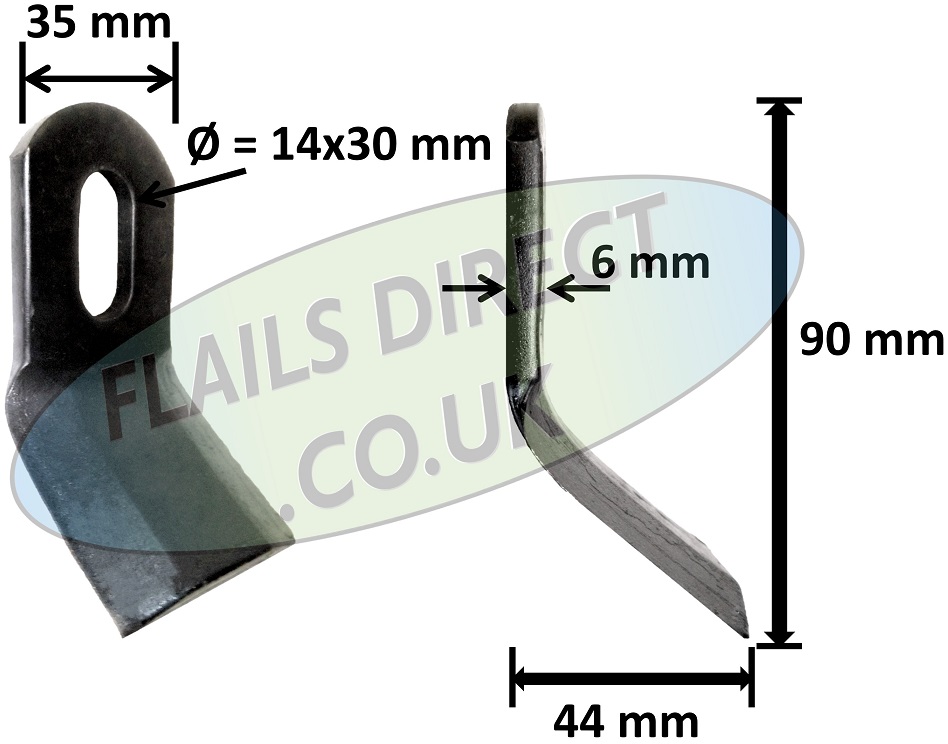

FD-nob-35	35	6	14 x 30	90	44	✗

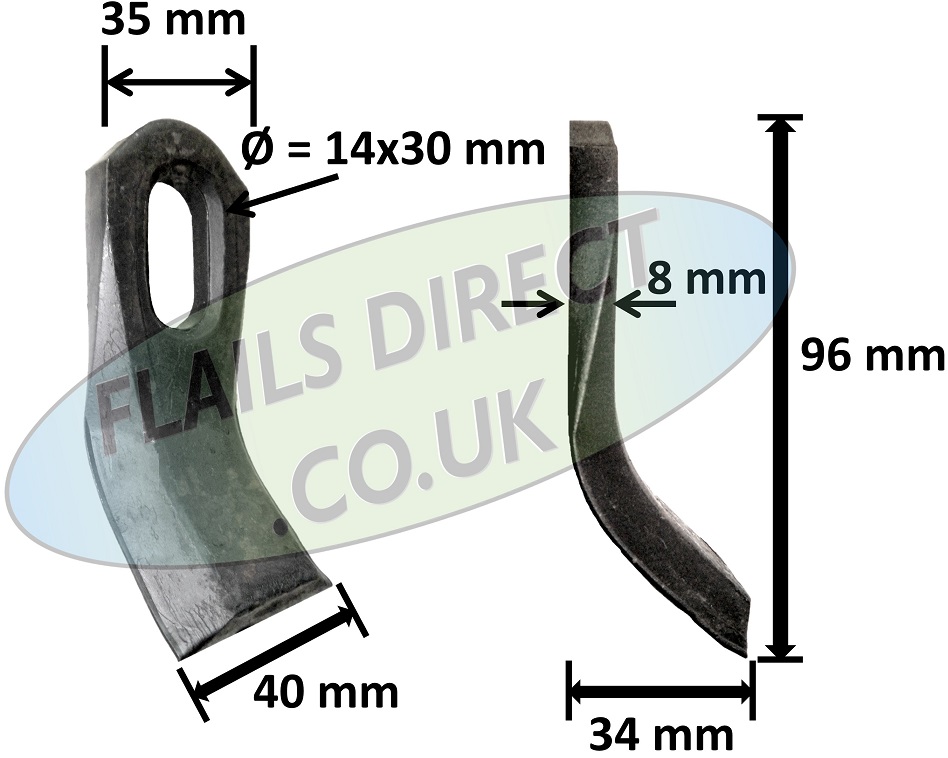

FD-kuh-100	35	8	14 x 30	96	34	✗
FD-bom-57	35	8	14.5 x 35	113	41	✗
FD-bom-4309201	36	8	14.5 x 35	97	45	✓

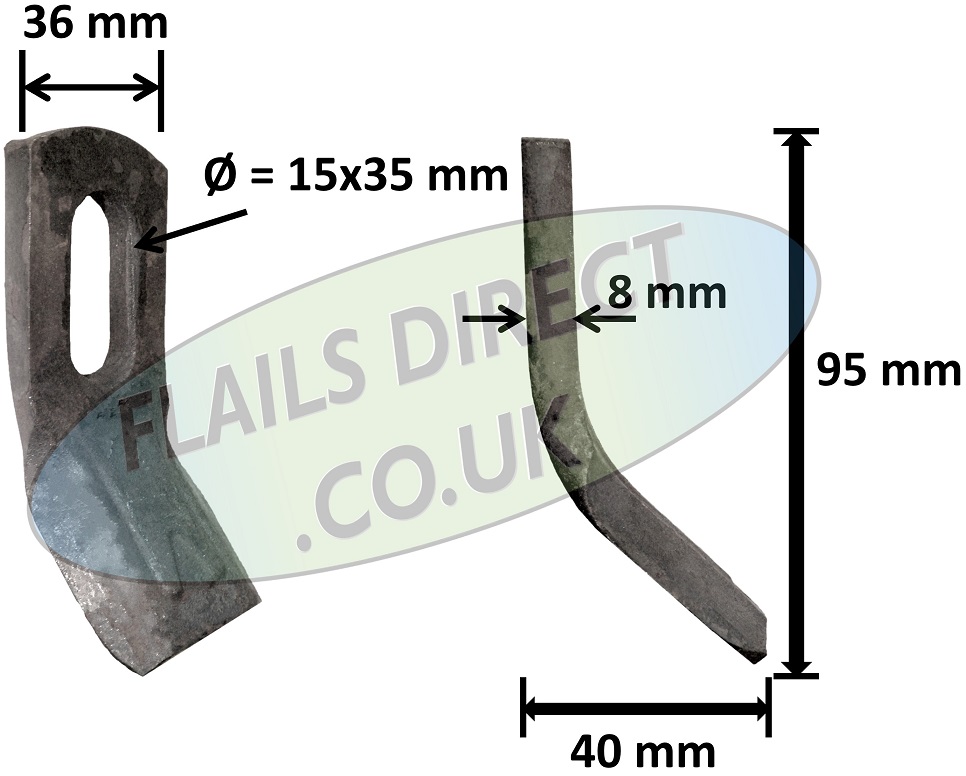

FD-rou-51	36	8	15 x 35	95	40	✓

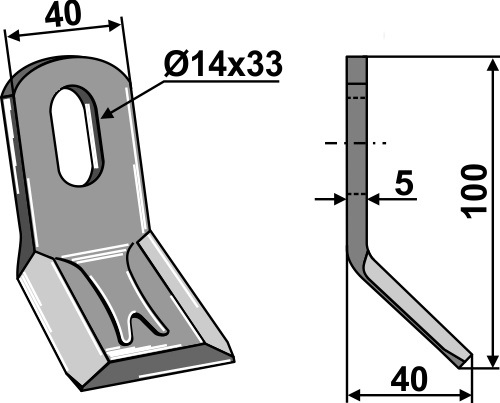

FD-ber-51	40	5	14 x 33	100	40	✗
FD-her-01	40	5	10.5 x 23	95	42	✗
FD-mal-24	40	5	13 x 26	80	37	✓

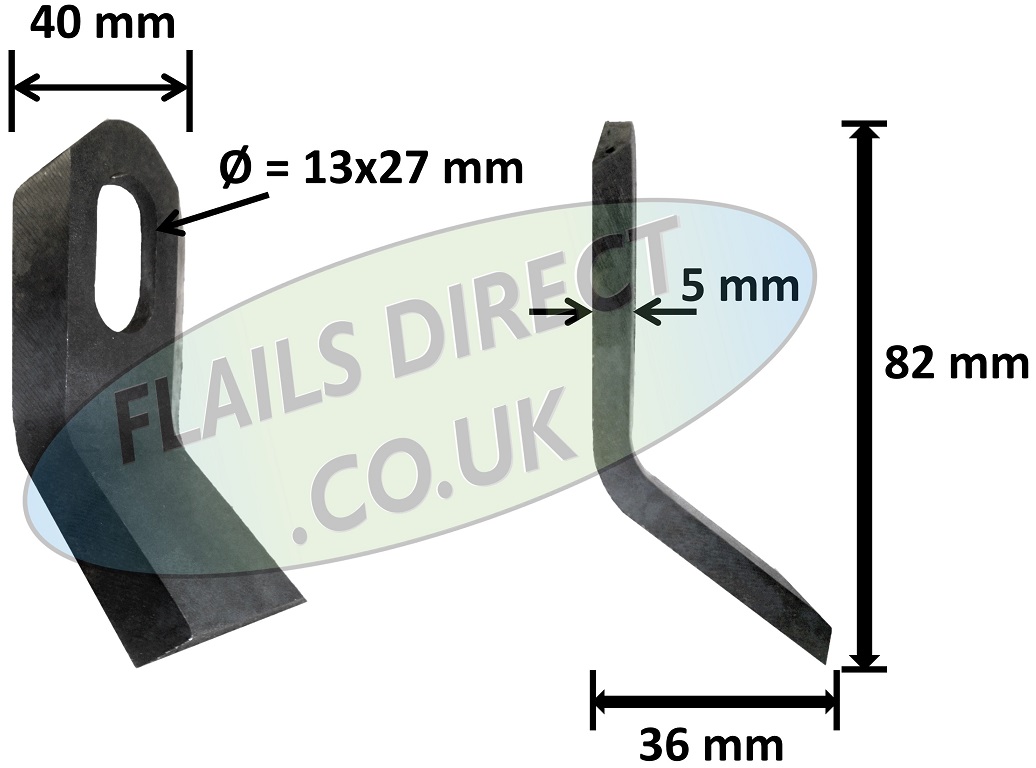

FD-mot-54	40	5	13 x 27	82	36	✗
FD-mul-53	40	5	13 x 27	100	31	✗
FD-rou-53	40	5	14.5 x 33	100	40	✓
FD-sm-01	40	5	14 x 30	82	42	✓
FD-sma-51	40	5	13 x 26	84	31	✓
FD-uni-01	40	5	14 x 33	95	34	✗
FD-fei-57	40	6	14 x 30	82	42	✓
FD-sic-10	40	6	14 x 30	90	43	✓

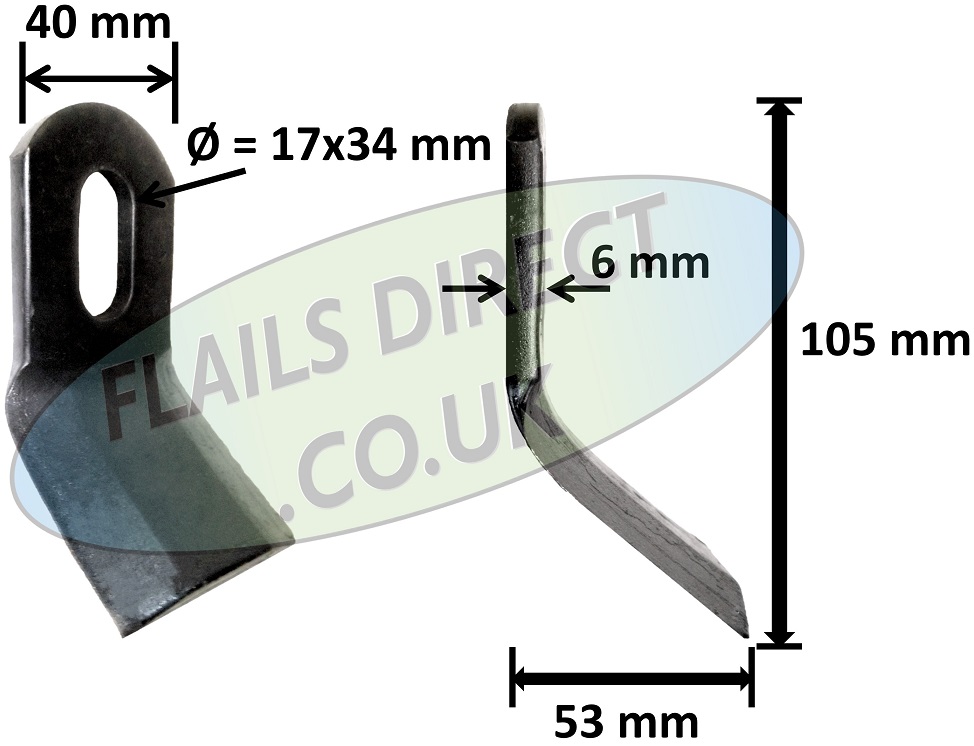

FD-zzz-31	40	6	17 x 34	105	53	✗
FD-how-51	40	6	18 x 30	83	32	✗
FD-uni-03	40	7	15 x 34	100	38	✗

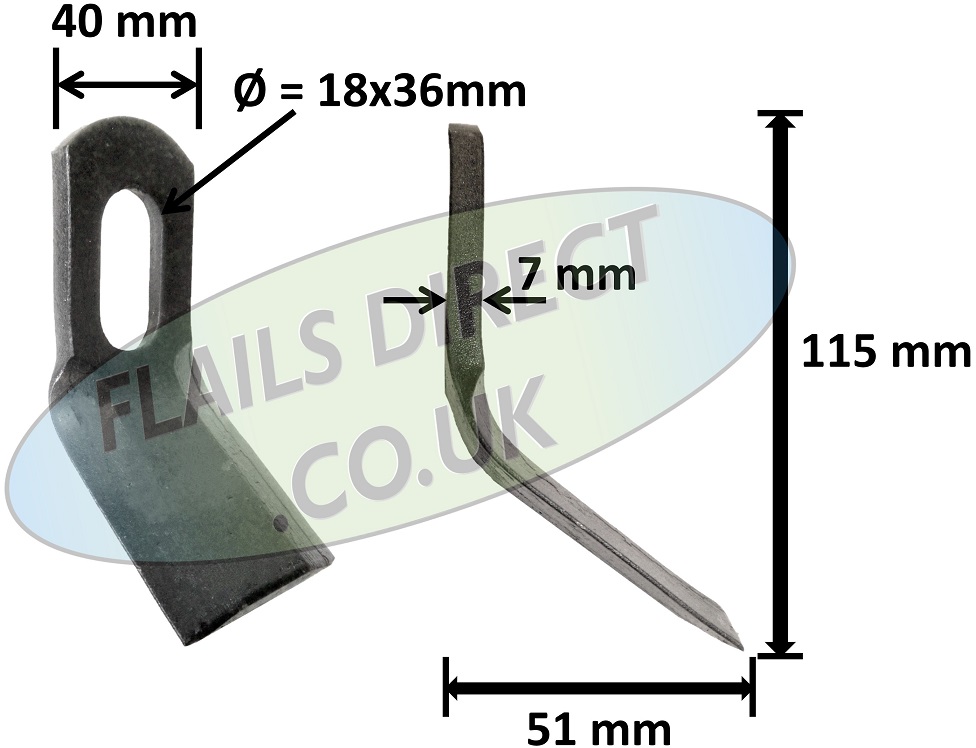

FD-gim-03	40	7	18 x 36	115	51	✗
FD-fei-13	40	8	14 x 29	85	43	✓
FD-fei-15	40	8	14 x 29	105	43	✓

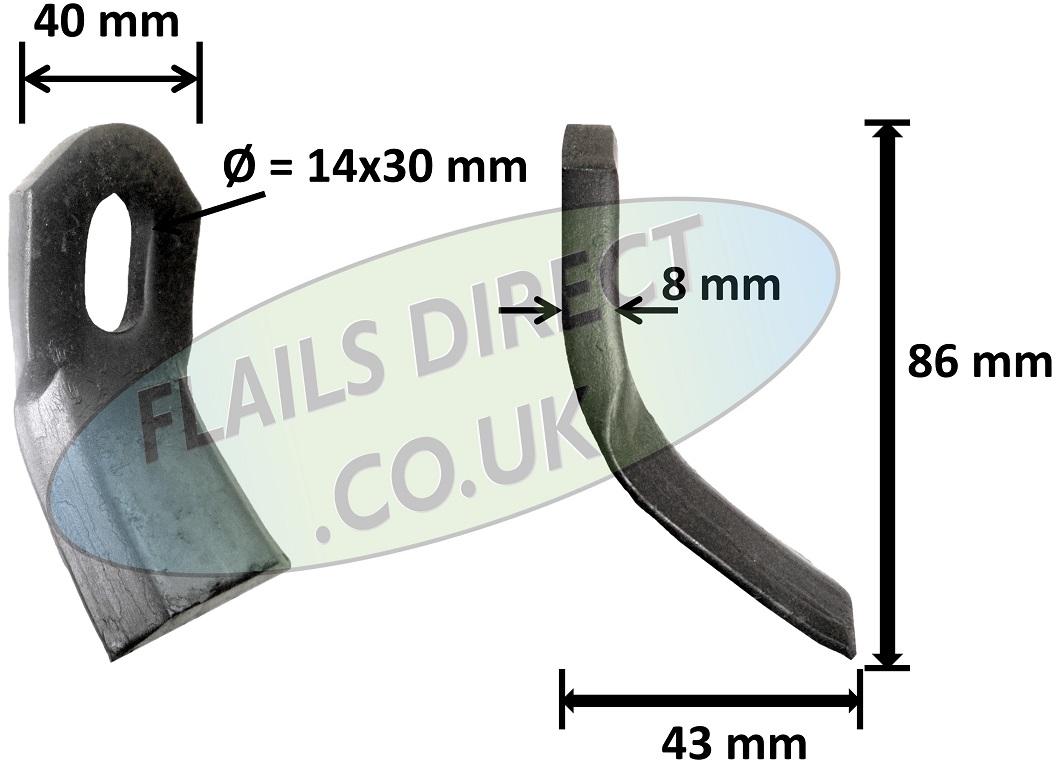

FD-fei-46	40	8	14 x 30	86	43	✓
FD-zzz-02	40	8	14 x 30	107	43	✗
FD-hym-01	40	8	14 x 30	114	42	✗
FD-fei-47	40	8	17 x 35	100	44	✗
FD-sma-56	40	8	15 x 40	98	42	✗
FD-sma-57	40	8	15 x 40	98	46	✗
FD-uni-04	40	8	16 x 30	98	44	✗

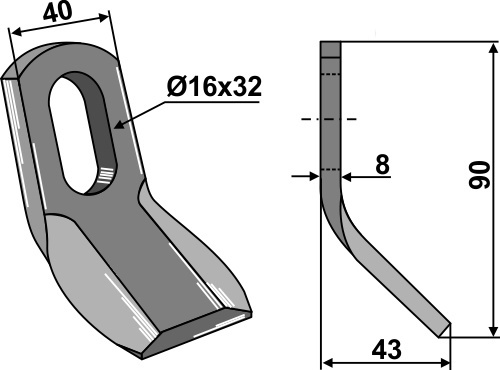

FD-sma-55	40	8	16 x 32	90	43	✗
FD-zzz-11	40	8	17 x 35	94	43	✗

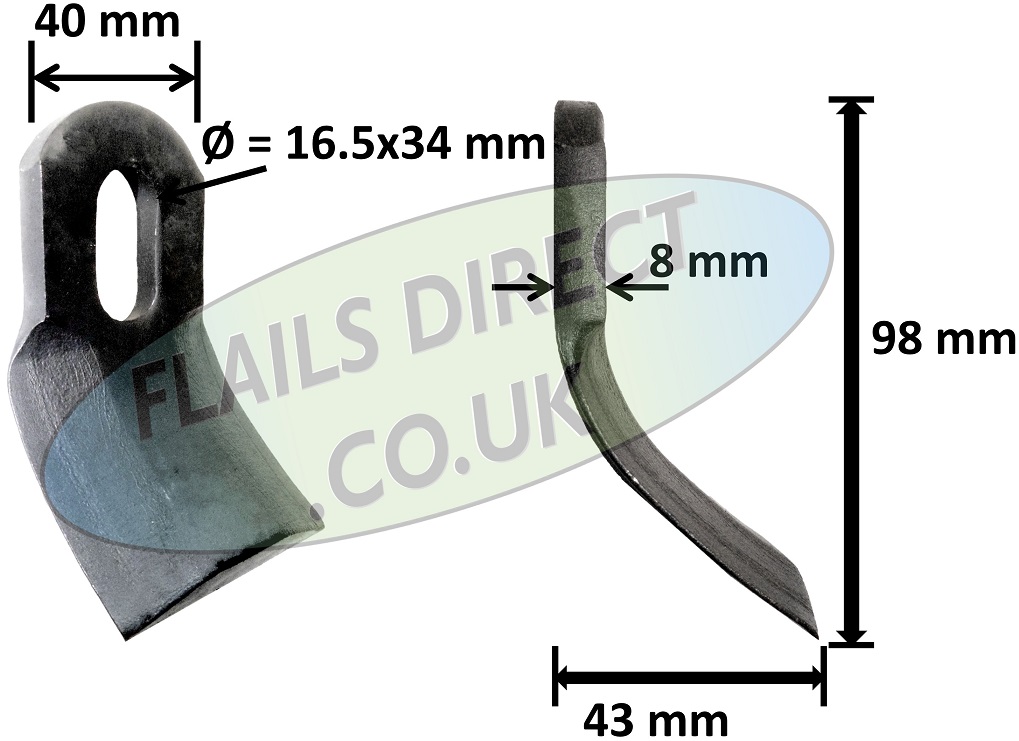

FD-ors-06	40	8	16.5 x 34	98	43	✗
FD-uni-06	40	8	16 x 41	95	41	✗
FD-fei-62	40	8	17 x 35	100	44	✗
FD-uni-12	41	5.5	14.5 x 35	96	36	✗
FD-bom-53	41	6	15.5 x 40	95	33	✓
FD-uni-02q	41	6	15 x 33.5	93	36	✓

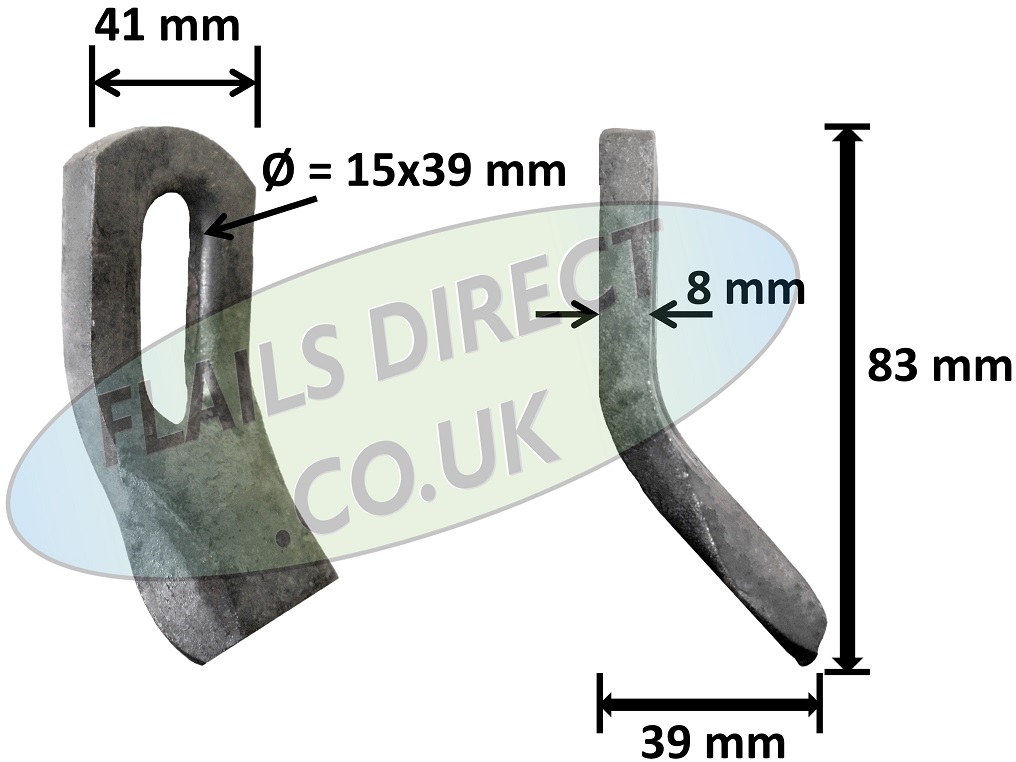

FD-sph-51	41	8	15 x 39	83	39	✓

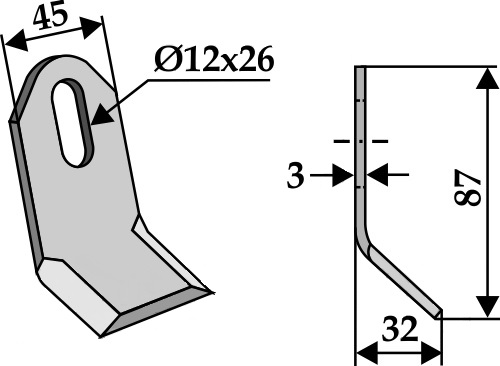

FD-mot-56	45	3	12 x 26	87	32	✗

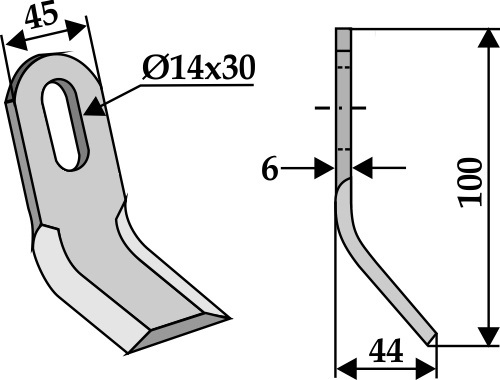

FD-mot-55	45	6	14 x 30	100	44	✗
FD-spi-04	45	6	20 x 30	85	34	✗
FD-uni-09	45	8	15.5 x 38	100	36	✓
FD-bom-05	45	8	16 x 38	100	40	✓
FD-sma-52	50	6	15 x 34	91	40	✗
